I Product Introduction

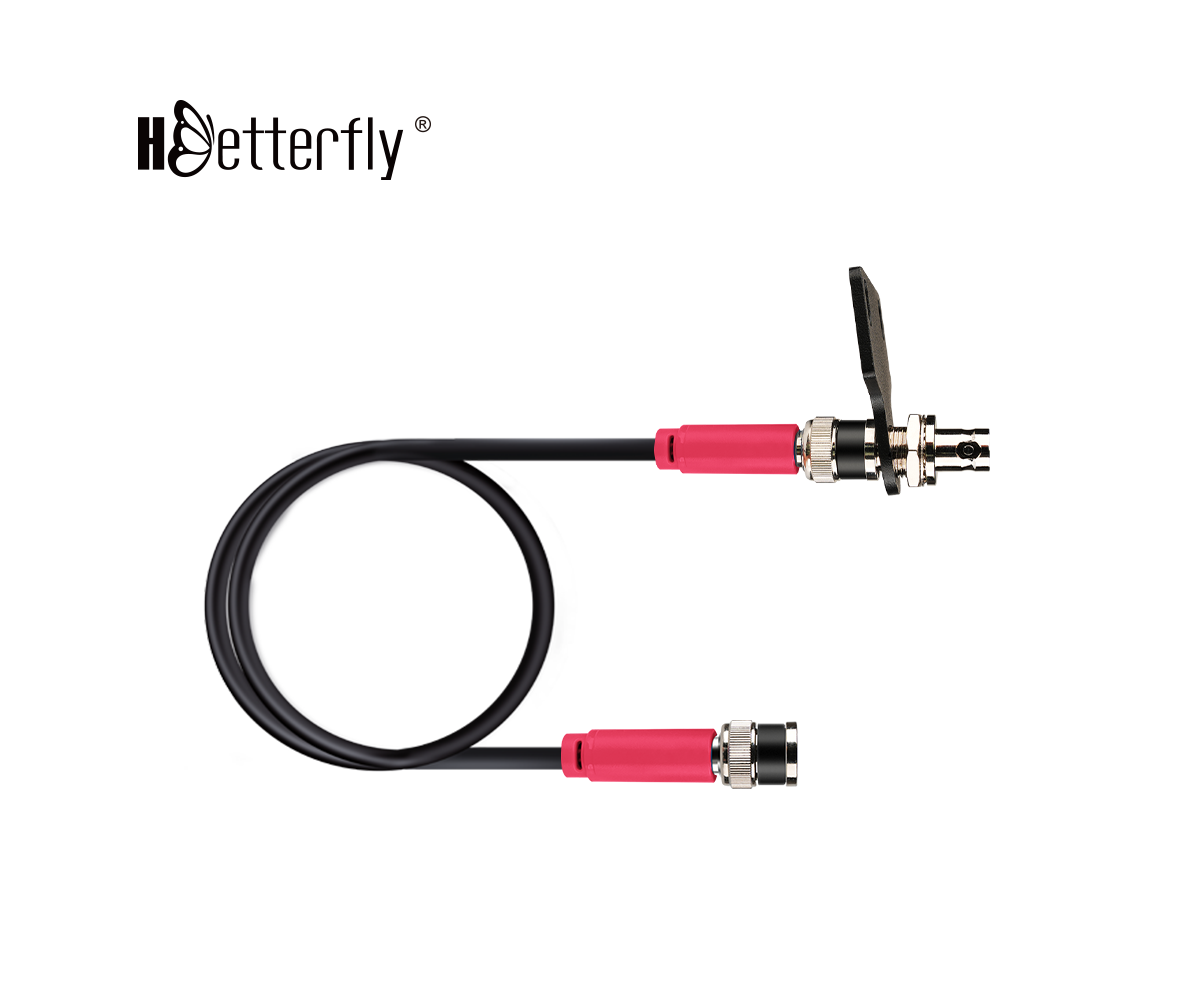

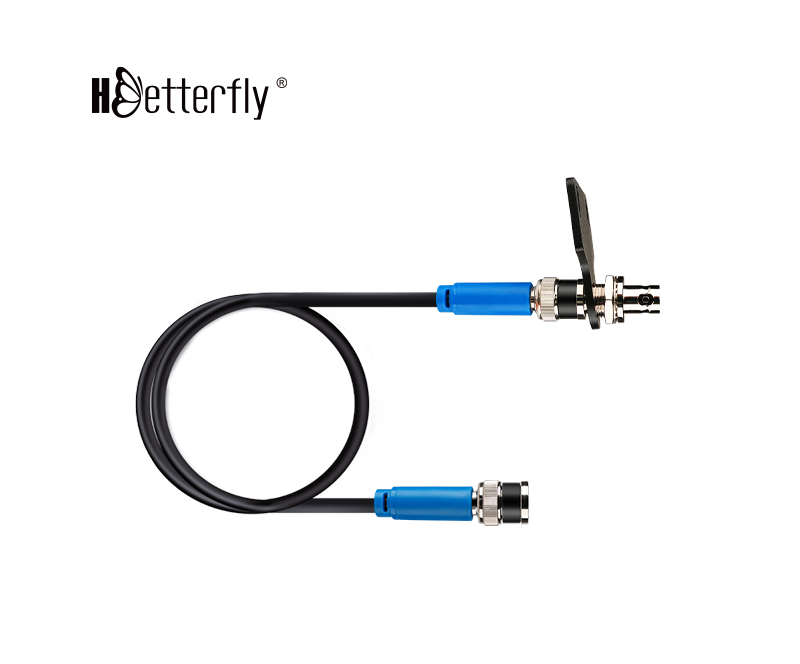

This external adapter for the antenna is designed to facilitate users in transferring the microphone main unit's antenna from the interior of the case to the exterior, providing a better signal reception effect and avoiding the attenuation of the antenna signal caused by the case. The adapter is connected by a high-quality feeder line to ensure stable signal transmission. When used in conjunction with the bracket, it can firmly fix the onboard antenna at the edge of the case, enhancing the antenna's working efficiency.

I Product features

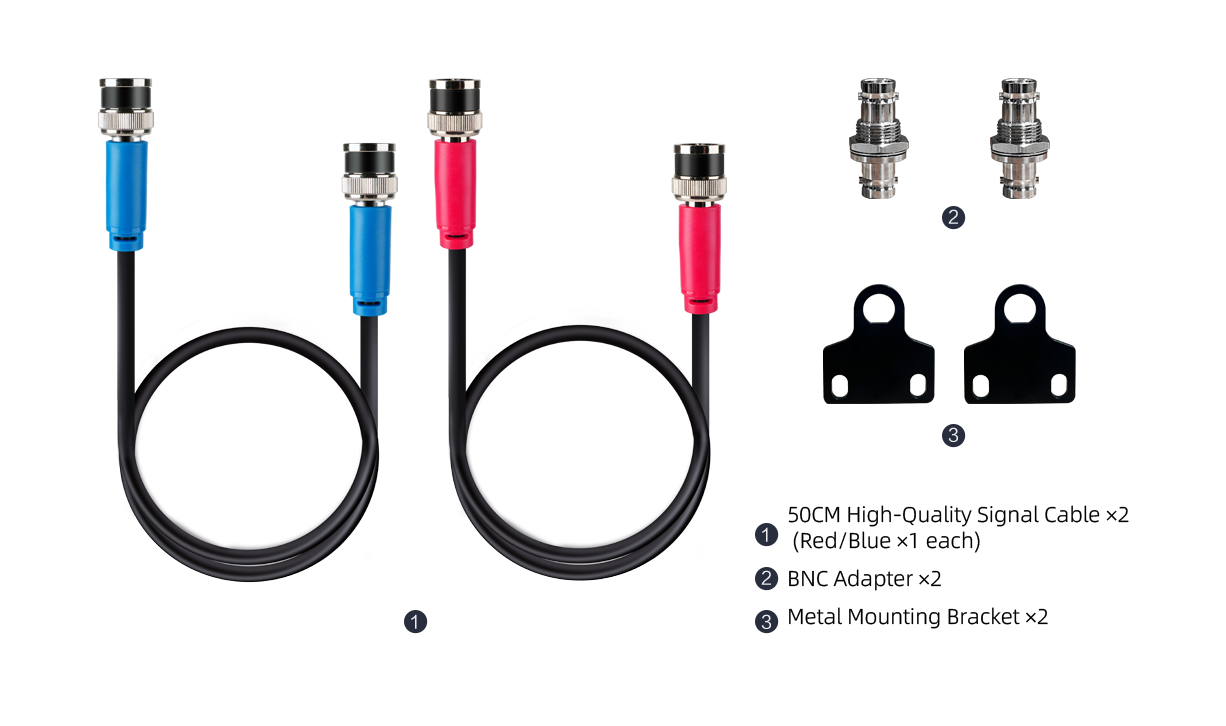

1. Feed line connection:

• Equipped with a high-quality 50CM feeder, the length is moderate, ensuring the lowest signal transmission loss.

• It adopts the standard BNC interface and is compatible with various types of antennas.

2. Frame Design:

• It is made by pressing sturdy and durable iron plates, ensuring that the antenna is securely fixed in various environments.

• The bracket design is simple and easy to install. It can quickly fix the short pole antenna at the edge of the chassis.

3. Easy to install:

• Complete Installation Accessories & Instructions Users can install easily without professional tools.

• Thoughtful Design Accessories blend seamlessly with the flight case for a clean, coordinated look.

4. Signal Optimization:

• By moving the antenna out of the chassis, the interference from the metal barrier of the chassis on the signal is avoided, significantly enhancing the signal reception and transmission capabilities.

• Supports multiple frequency bands and is suitable for various wireless communication requirements.

5. Compact design:

• The accessories are compact in size and do not occupy much space, making them suitable for various types of computer cases.

I Application scenario

• Suitable for wireless devices that require an external antenna to enhance the signal, such as routers, wireless communication devices, etc.

• Suitable for use in environments with weak signals.

Compatibility

• Compatible with the majority of short antenna types and chassis designs, it can flexibly meet the diverse needs of users.

Safety Precautions

• During the installation process, please make sure that the power supply of the equipment is turned off to prevent accidental short circuits.

• Regularly check the connection status of the feeder and the support to ensure the antenna operates stably.

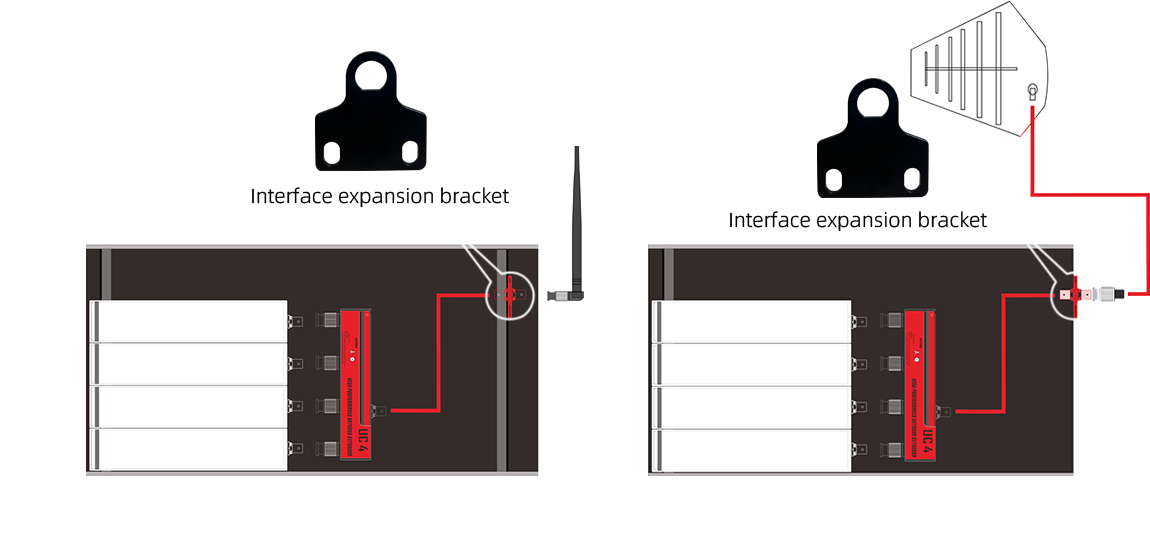

I Installation Diagram
