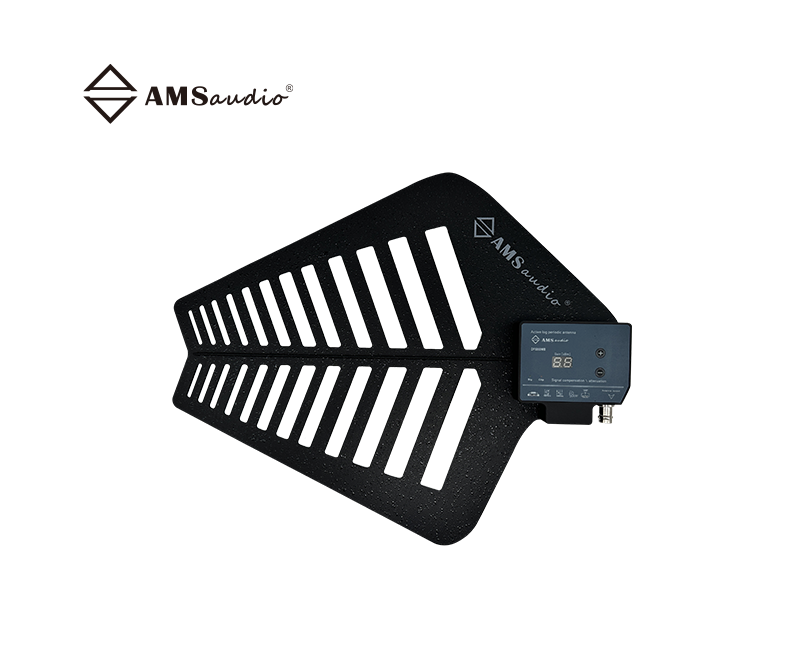

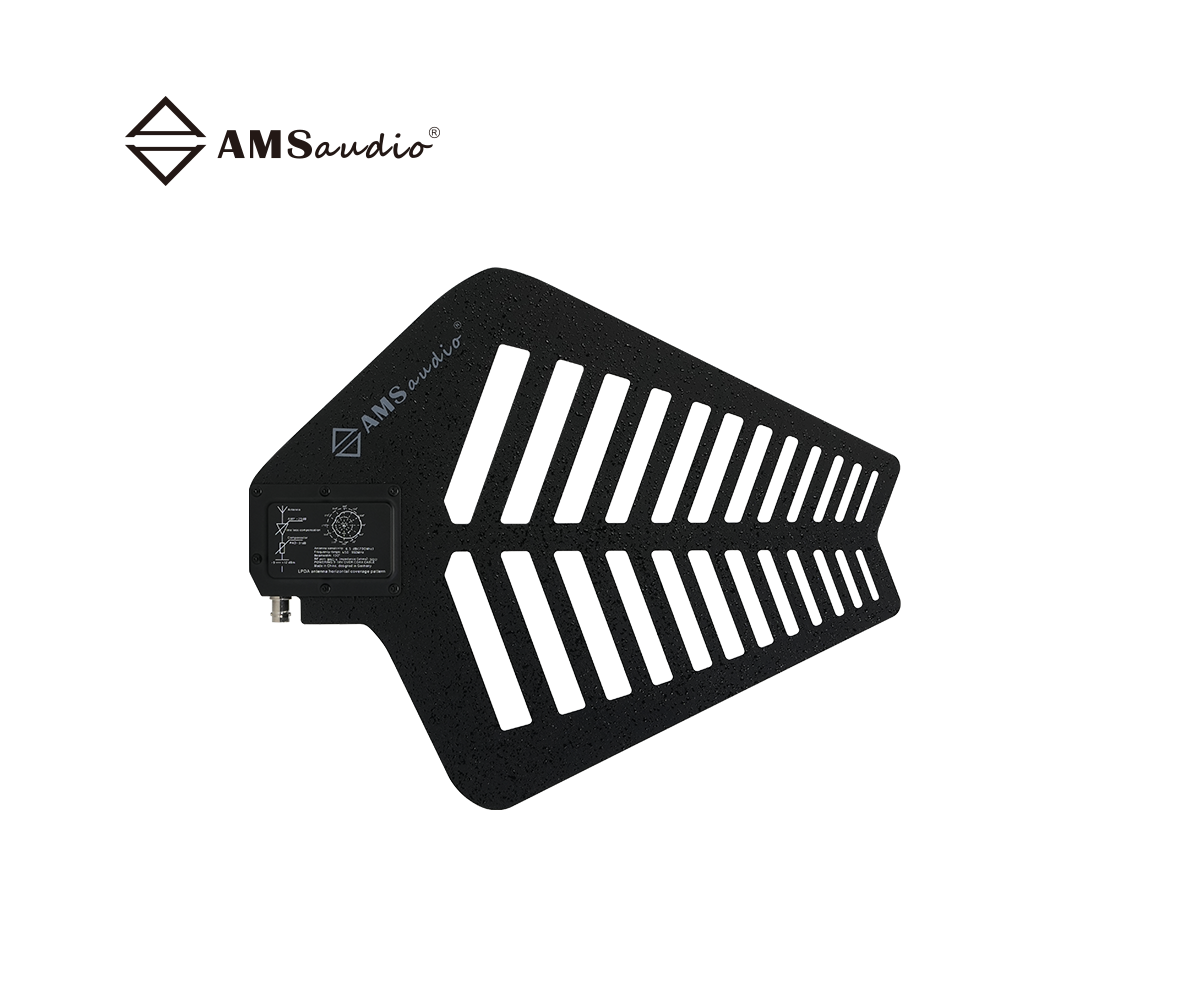

DF5000WBActive Full-Band Directional Antenna
Active full-band directional antenna, suitable for tours, stage performances, and large-scale mobile performances
Frequency range: 470–900 MHz
Side angle: (-20dB) approximately 90°
Front-back ratio: ≤ 20dB
Gain typical value: 7.5 dBi
Impedance: 50Ω
Connection: BNC
Installation: Vertical mounting
Diameter size: approximately 350*290 mm
Weight: approximately 367 grams
Operating temperature range: -40° - +75°
Storage temperature range: -50° - +85°
Dust and water protection grade (IEC): Ip53
Side angle: (-20dB) approximately 90°
Front-back ratio: ≤ 20dB
Gain typical value: 7.5 dBi
Impedance: 50Ω
Connection: BNC
Installation: Vertical mounting
Diameter size: approximately 350*290 mm
Weight: approximately 367 grams
Operating temperature range: -40° - +75°
Storage temperature range: -50° - +85°
Dust and water protection grade (IEC): Ip53
Suitable for tours, stage performances, and large-scale mobile performances
Antenna x1
PRODUCT DETELS / Details
I The application is highly functional and easy to operate.
The DF5000WB employs a logarithmic periodic dipole array, which can provide excellent reception performance when aimed at the desired coverage area. The integrated amplifier has a gain range of -9 to +12 dB, used to compensate for signal losses of different levels of coaxial cables. It is compatible with various antenna distribution systems, antenna amplifiers, or wireless microphone hosts.
 | Employing advanced array design to enhance signals and ensure wireless transmission. | | It is compatible with various antenna distribution systems, antenna amplifiers or wireless microphones. |
| Easy installation and precise directional control. | | Flexible gain settings and compatibility - a gain range of -9 to +12 dB. |

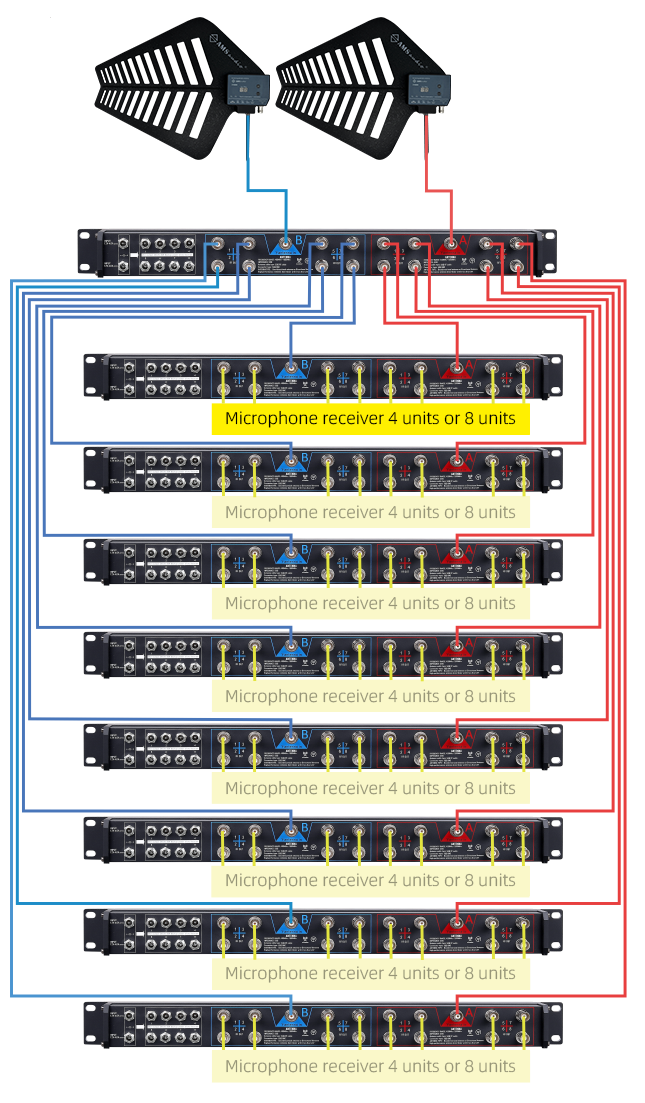

I Application Demonstration
