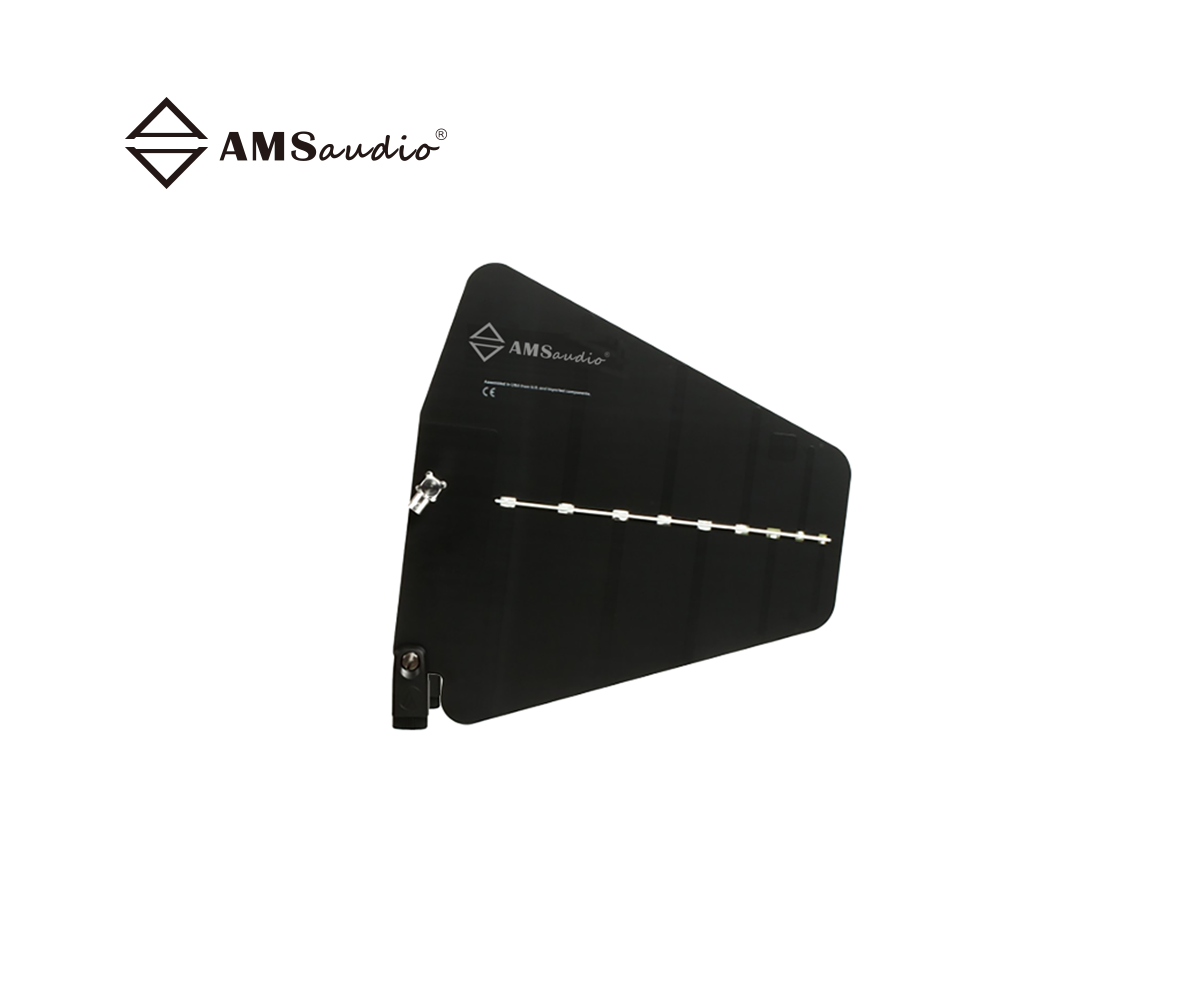

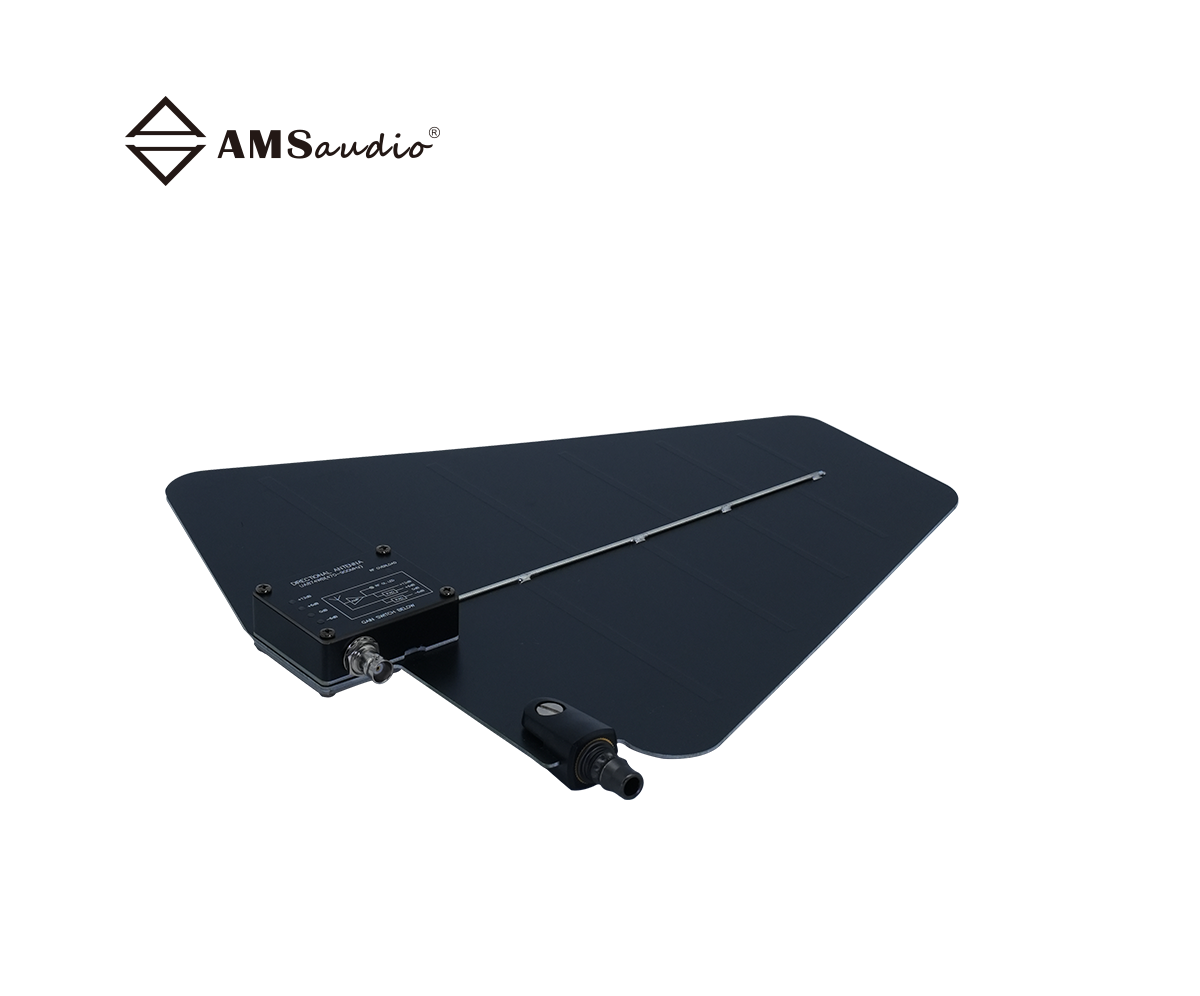

UA874WBActive Broadband Directional Antenna
Connector type: BNC,
Plug-in impedance: 50
Power supply requirement: 10 to 15 volts DC offset from coaxial connection, 75 mA
Receiving mode (3 dB beam width): 70 degrees
Third-order overload crossover point (OIP3): > 30 dBm
Antenna gain (in axis): 7.5 dBi
Signal gain ±1 dB: Switchable
Active: +12 dB, +6 dB
Plug-in impedance: 50
Power supply requirement: 10 to 15 volts DC offset from coaxial connection, 75 mA
Receiving mode (3 dB beam width): 70 degrees
Third-order overload crossover point (OIP3): > 30 dBm
Antenna gain (in axis): 7.5 dBi
Signal gain ±1 dB: Switchable
Active: +12 dB, +6 dB
PRODUCT DETELS / Details
Connection type:BNC,
Plug impedance:50
Only power supply requirements:A 10 to 15 volt DC offset from a coaxial connection, with 75 mA
Receiving mode (3 dB beam width):70 deg
Third-order overload intersection point (OIP3):>30 dBm
Antenna gain (in the axis):7.5 dBi
Signal gain ±1 dB:Switchable
Active: +12 dB, +6 dB
