I Technical Specifications

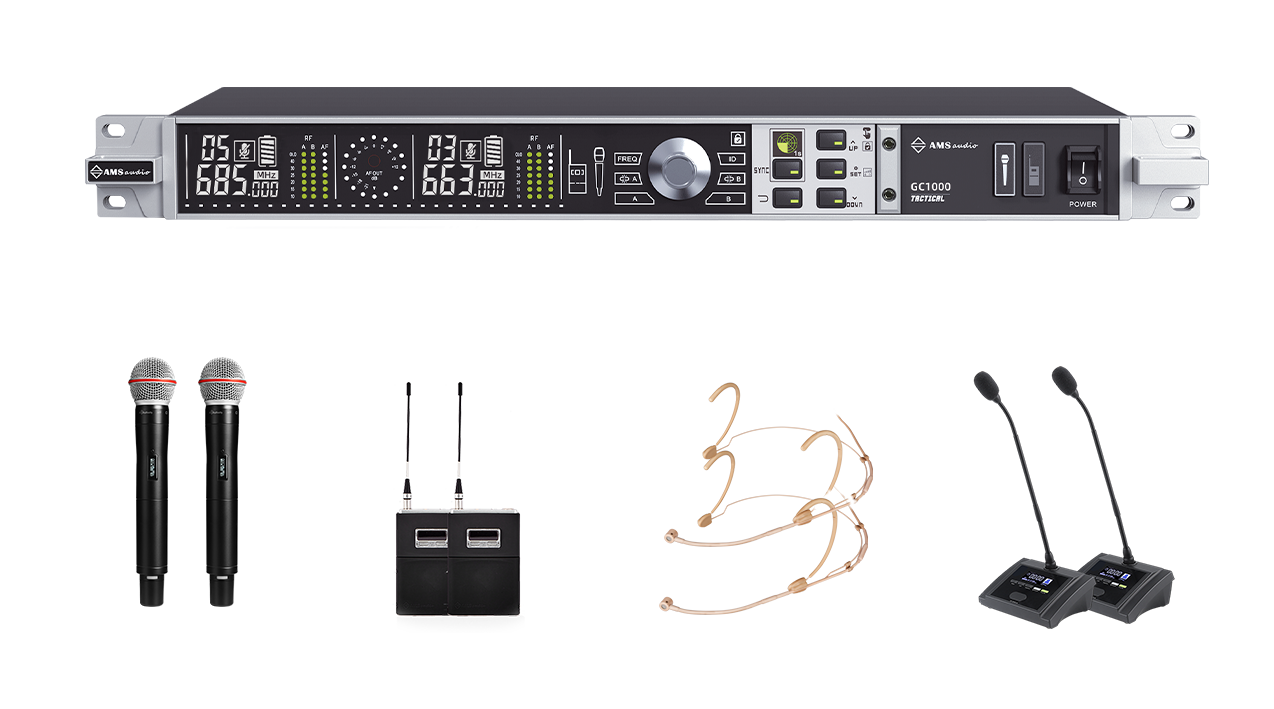

GC1000 Wireless microphone receiver

One-click switch to change the used transmitter, The central control unit can control the receiver via RS485/232, as well as the interference warning and frequency interruption analysis functions, serial port communication and local area network communication functions. The host display can set the host number and synchronize the display with the transmitter. There are 2 RJ45 data networking interfaces and 2 transmitter switching buttons. Multiple hosts can be networked and switch the transmitters.

Frequency modulation method: Broadband frequency modulation

Frequency range:780-820  MHz

Frequency adjustment:1600 reception frequencies, with the ability to be tuned using a 25KHz step size

Work bandwidth:50MHz

Maximum noise reduction (reference value ±38 kHz deviation)：>102 dB, (A weighted)

Radio frequency sensitivity：(2.0 μV，12)

System distortion (reference value ±38 kHz deviation, 1 kHz modulation method)：0.3% Total Harmonic Distortion  Total Harmonic Distortion  This term is used to measure how much current noise is generated by the measuring device.

Output impedance:The line impedance is less than 30 Ω.

Receiver audio output level (±38 kHz deviation, 1 kHz tone)：XLR interface (connected to a 600 Ω load)： -24 to +9 dBV (line)

Audio response range:25-18000HZ

Handheld microphone transmitter

Radio Frequency Modulation Method: Broadband FM

Frequency range:  780--820 MHz

Frequency adjustment:  1600 reception frequencies, with the ability to be tuned using a 25KHz step size

Replaceable Shure interface microphone head (microphone element)

Work bandwidth:  40MHz

Illusion Power Supply Output: 10V

Control noise suppression: Pilot tone control sound

Communication Encryption:128-bit encoding encryption

Radio frequency power output:  30mW(Maximum value)

Battery Requirements: 3V AA batteries, 2 in total
