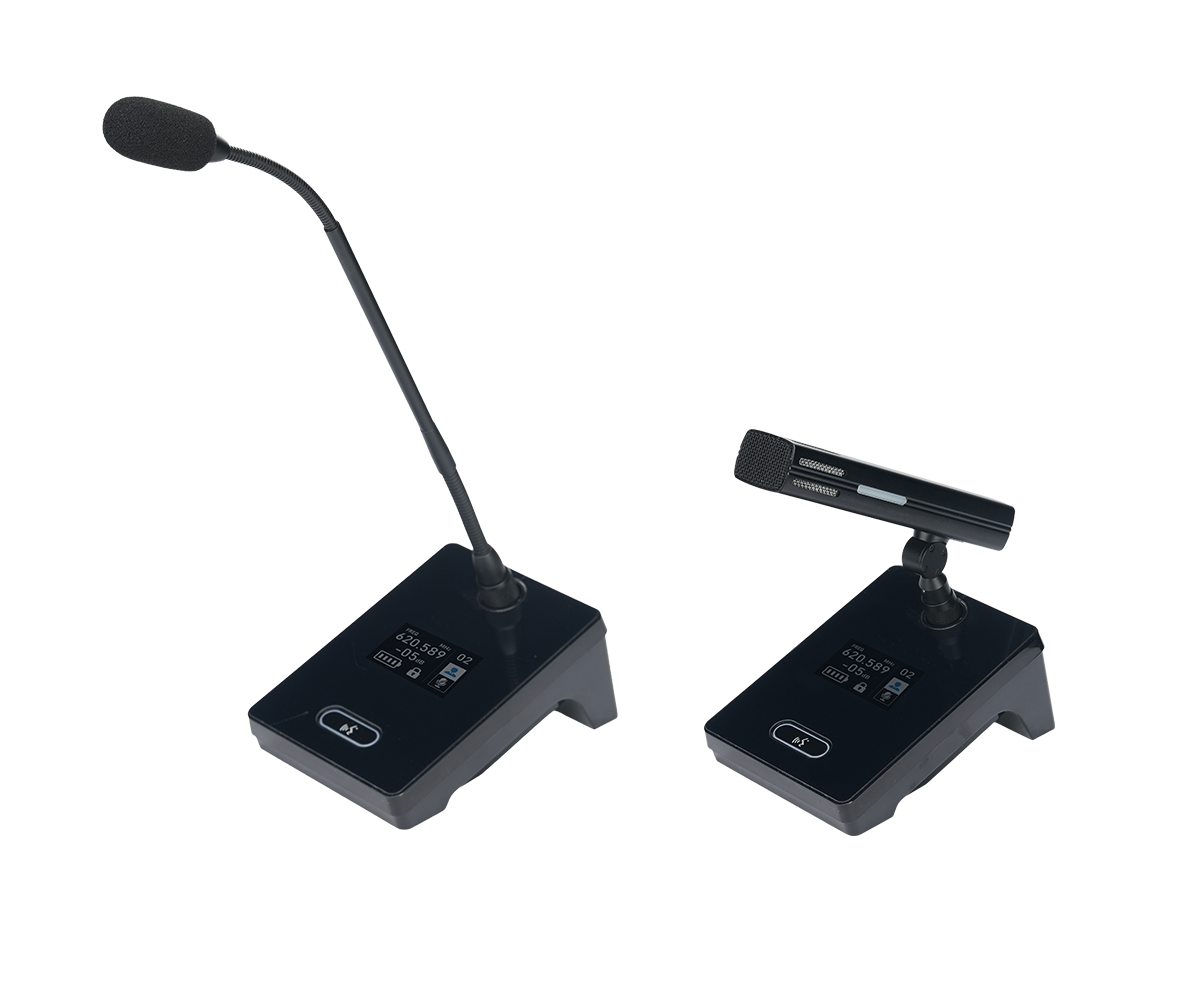

ES700HWireless Conference Standing-Type Transmitter
Frequency range: 640-690 MHz
Number of adjustable channels: 200
Oscillation mode: Phase-Locked Loop Frequency Synthesis (PLL)
Harmonic suppression: -30dB
Modulation mode: Frequency Modulation (FM)
Frequency modulation method: Infrared Frequency Synchro
Maximum offset: ±45KHz
RF power output: 3-30mW
Microphone: Dynamic
Power supply method: 2 AA batteries
Usage duration: Approximately 8 hours
Number of adjustable channels: 200
Oscillation mode: Phase-Locked Loop Frequency Synthesis (PLL)
Harmonic suppression: -30dB
Modulation mode: Frequency Modulation (FM)
Frequency modulation method: Infrared Frequency Synchro
Maximum offset: ±45KHz
RF power output: 3-30mW
Microphone: Dynamic
Power supply method: 2 AA batteries
Usage duration: Approximately 8 hours
PRODUCT DETELS / Details
I Technical Specifications
Radio Frequency Modulation Method: Broadband FM
Frequency range: 640-690MHz
Frequency adjustment: 1600 reception frequencies, with a step size of 25KHz . Continue with the tuning process
Replaceable Shure interface microphone head (microphone element)
Work bandwidth: 40MHz
Illusion Power Supply Output: 10V
Control noise suppression: Pilot tone control sound
Communication Encryption:128-bit encoding encryption
Radio frequency power output: 30mW(Maximum value)
Battery Requirements: 3V AA batteries, 2 in total
