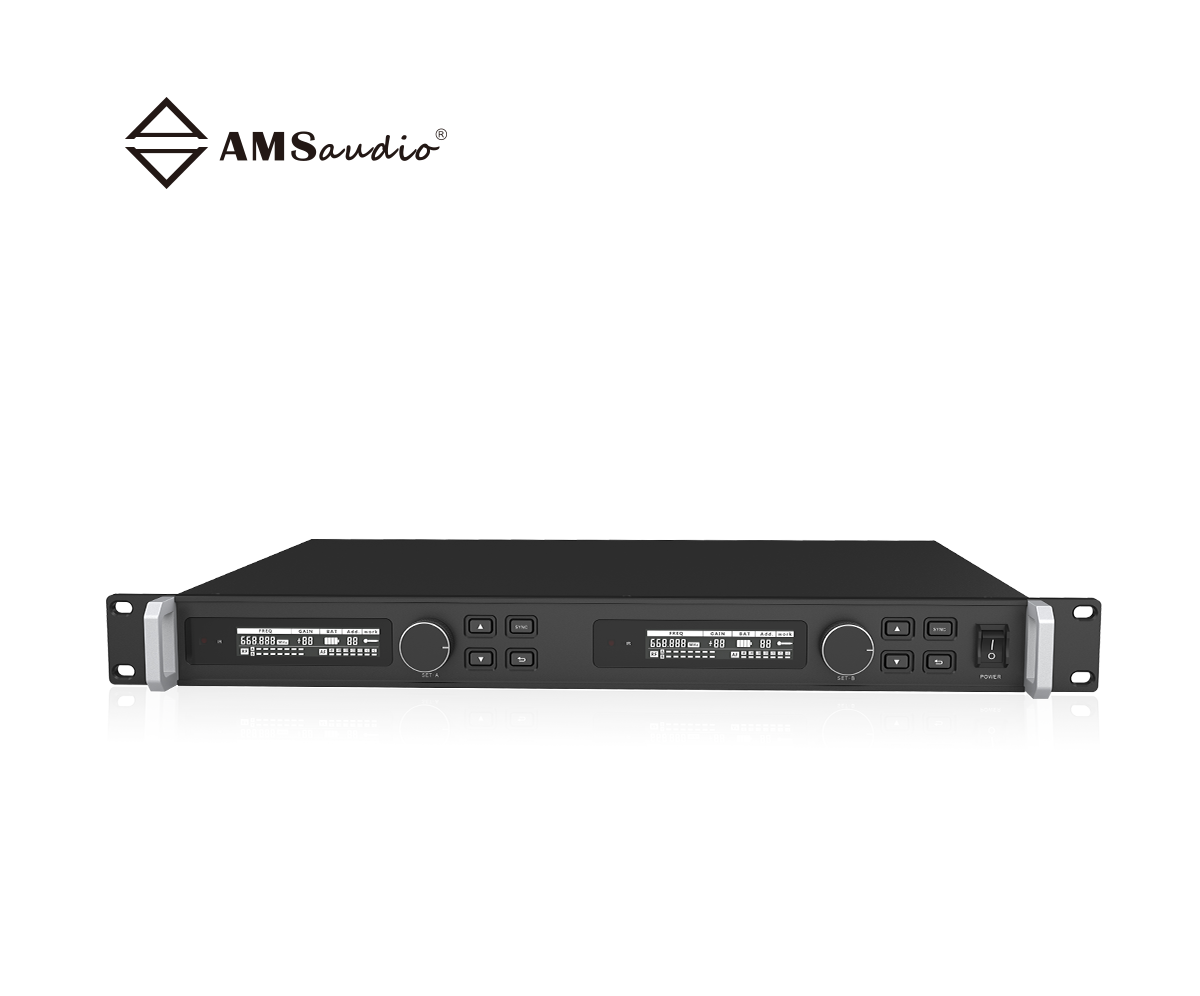

G500True Diversity Dual-Channel Wireless Microphone Receiver
Adjustable channel count: 100×2;
Oscillation mode: Phase-Locked Loop Frequency Synthesis (PLL);
Frequency stability: ±10 ppm;
Reception mode: True Diversity Super-External Frequency Conversion;
Pilot mode: Digital Pilot;
Circuit audio frequency response: 20-20000 Hz;
Harmonic distortion: ≤0.5%;
Signal-to-noise ratio: ≥50 dB;
Audio output: Balanced output and mixed output;
Reception sensitivity: ≤-100 dBm;
Power supply specifications: 12VDC/2A
PRODUCT DETELS / Details
I Technical Specifications
G500 Wireless microphone receiver
One-click switch to change the used transmitter
Frequency range:640-690MHz；
Adjustable channel number：100×2；
Oscillation mode:Phase-locked loop frequency synthesis (PLL)；
Frequency stability:±10ppm；
Receiving Method:True diversity superheterodyne secondary frequency conversion；
Pilot mode:Digital pilot signal；
Circuit audio frequency response:20-20000Hz；
Harmonic distortion: ≤0.5%；
Signal-to-noise ratio: ≥50dB；
Audio Output:Balanced output and mixed output；
Receiving sensitivity:≤-100dBm；
Power supply specifications:12VDC/2A

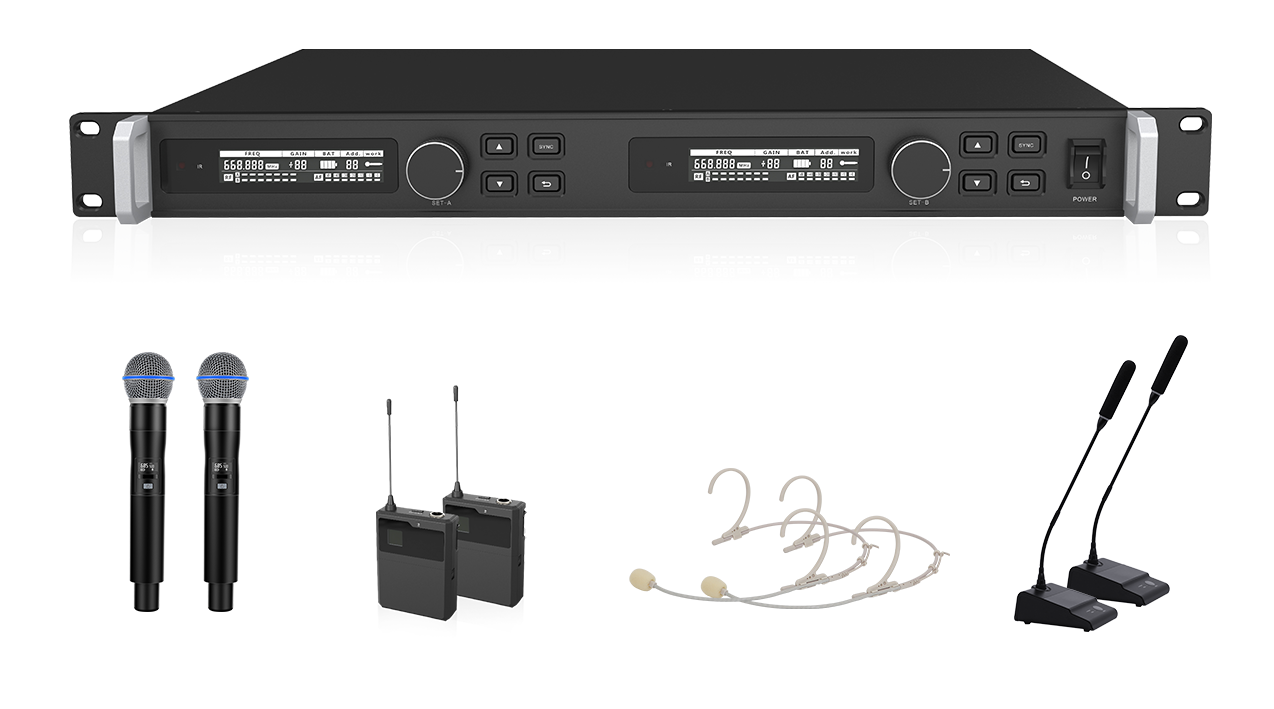

Handheld / waistpack / swivel-head transmitter
Frequency range: 640-690MHz
Adjustable channel number: 200
Oscillation mode: Phase-locked loop frequency synthesis (PLL)
Harmonic Suppression: -30dB
Modulation method: Frequency modulation (FM)
Frequency modulation method:: Infrared frequency synchronization
Maximum offset: +-45KHz
RF power output: 3-30mW
Microphone pickup head: Dynamic coil type
Power supply method: 2 AA batteries
Usage duration: Approximately 8 hours
