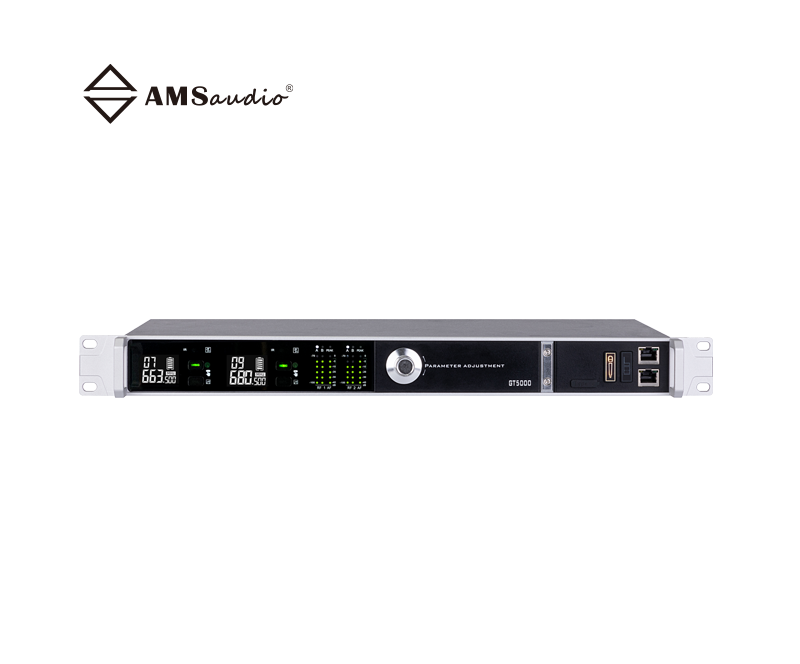

GT5000True Diversity Dual-Channel Wireless Microphone Receiver
Receiving sensitivity: -98 dBm
Diversity method: 4 antenna active true diversity
Number of antenna cascading ports: None
Transmitter switching function: Independent transmitter switching
Software radio: Supports WTC3 radio frequency planning software
Data local area network: Supports data local area network server frequency discontinuation warning: Signal difference (5 dB)
Central control control port: RS232/RS485
Frequency step: 25 KHz
System distortion: (Reference value + 45 KHz deviation, 1 KHz modulation method): 0.3% Total harmonic distortion Total harmonic distortion is used to measure how much current noise output impedance: Line level less than 30 Q
Receiving audio output level: (-45 KHz deviation, 1 KHz pitch): XLR interface (connected to 600 ohm load): -6 to +6 dBu (line) Audio response range: 30 - 18000 Hz
Frequency range (bandwidth): 510 - 560 (50 MHz) 640 - 690 (50 MHz) 780 - 820 (40 MHz)
Adapter power supply x1
Networking cable x1
Airborne antenna adapter
Product combination / Combination
PRODUCT DETELS / Details
I Receiving system
• True diversity reception • Four antennas receiving • Requires to be paired with an antenna distributor unit • Support the use of directional antennas
I Output performance
• Host output:+3dBU
I One-button switch function between pocket and handheld mode
Each channel of the host can store 2 frequencies. When switching between them, the audio signal of the stored frequency automatically becomes silent. This enables one host to serve 2 handheld devices and 2 waist packs, allowing for seamless switching. The one-click switching feature is a patented technology of AMSaudio, which can significantly reduce the equipment investment for small-scale performances and simplify the application scenarios.
I The network port supports multi-device cascading.
The GT5000 host is equipped with network interface for data transmission, which can be used for routine firmware upgrades and for synchronizing functions when multiple units are cascaded and switched at once.
I Support WTC3 software management
The WTC3 platform is connected to the network port of the GT5000 host. The GT5000 host can upload its own data in real time for WTC3 to read and manage. It can provide information such as battery level, RF (radio frequency) information, AF (audio frequency) level information, interference warning information, channel number, and handheld waist bag mode, etc., a total of more than 20 items.
• Independently developed WTC3 wireless terminal platform
I The GT5000 wireless receiver can be compatible with the following microphone transmitters.
I It can also be used in combination with the TK200 tour series swivel-neck conference microphone.。
I General size is suitable for wide range of applications and is convenient and flexible to use.
I GT5000 / GT6000 / TC2100 / TC2200 Parameter Configuration Comparison Table
I Product details
I Product List
①Receiver*1 ②Compatible power supply*1 ③Network patch cord*1 ④Airborne antenna selection and configuration
