GT6000True Diversity Dual-Channel Wireless Microphone Receiver
Typical application distance: 100 meters (in an environment without obstacles or interference compared to the GT series transmitters)
Demodulation method: Broadband frequency modulation
Receiving sensitivity: -100 dBm
Diversity method: 2 antenna active true diversity
Number of antenna cascading ports: 2 BNC
Number of multi-machine antenna cascading: Suggested 4 units (maximum no more than 8 units)
Transmitter switching function: Independent switching of the transmitter
Software radio: Supports WTC3 radio frequency planning software
Data local area network: Supports data local area network server
Frequency deviation warning: Signal difference (5 dB)
Central control control port: RS232/RS485
Audio level output: +6 dBu
Frequency step: 25 KHz
System distortion: (reference value ±45 KHz deviation, 1 KHz modulation mode): 0.3% Total harmonic distortion Total harmonic distortion is used to measure how much current noise is generated by the device
Output impedance: Line level less than 30 Ω
Receiver audio output level: (±45 KHz deviation, 1 KHz pitch): XLR interface (connected to 600 Ω load): -6 to +6 dBu (line)
Audio response range: 30 - 18000 Hz
Frequency range (bandwidth): 510 - 560 (50 MHz) 640 - 690 (50 MHz) 780 - 820 (40 MHz)
Adapter power supply x1
Networking cable x2
Onboard antenna option
Product combination / Combination
PRODUCT DETELS / Details
I Receiving system
• True diversity reception • Two antennas receive • Built-in cascading function •Built-in compensation function • Support 4 channels sharing 2 antennas or directional antennas
I Output performance
• Host output:+6dBU
I Hardware configuration
• Use more imported components
I One-button switch function between pocket and handheld mode
Each channel of the host can store 2 frequencies. When switching between them, the audio signal of the stored frequencies will automatically become silent. This enables one host to be used by 2 handheld devices and 2 waist packs, allowing for seamless switching. The one-click switching feature is a patented technology of AMSaudio, which can significantly reduce the equipment investment for small-scale performances and optimize the application scenarios.
I Functional Features
• Four mainframe antennas are cascaded, making the construction of the multi-cabinet system more convenient.
1.For example, a UC80 can allocate 8 cabinet groups, with a total of 8*8 = 64 channels (two directional antennas combined with UC80 can complete the allocation).
2. Built-in antenna circuit line loss compensation, the host has stronger external suppression capability, uses more imported components, and has a higher wireless signal-to-noise ratio.
• The antenna signal amplification cascading function is simple and stable. Up to 4 to 8 machines can share one set of antennas.
• Built-in signal amplification and distribution, directly using various antennas

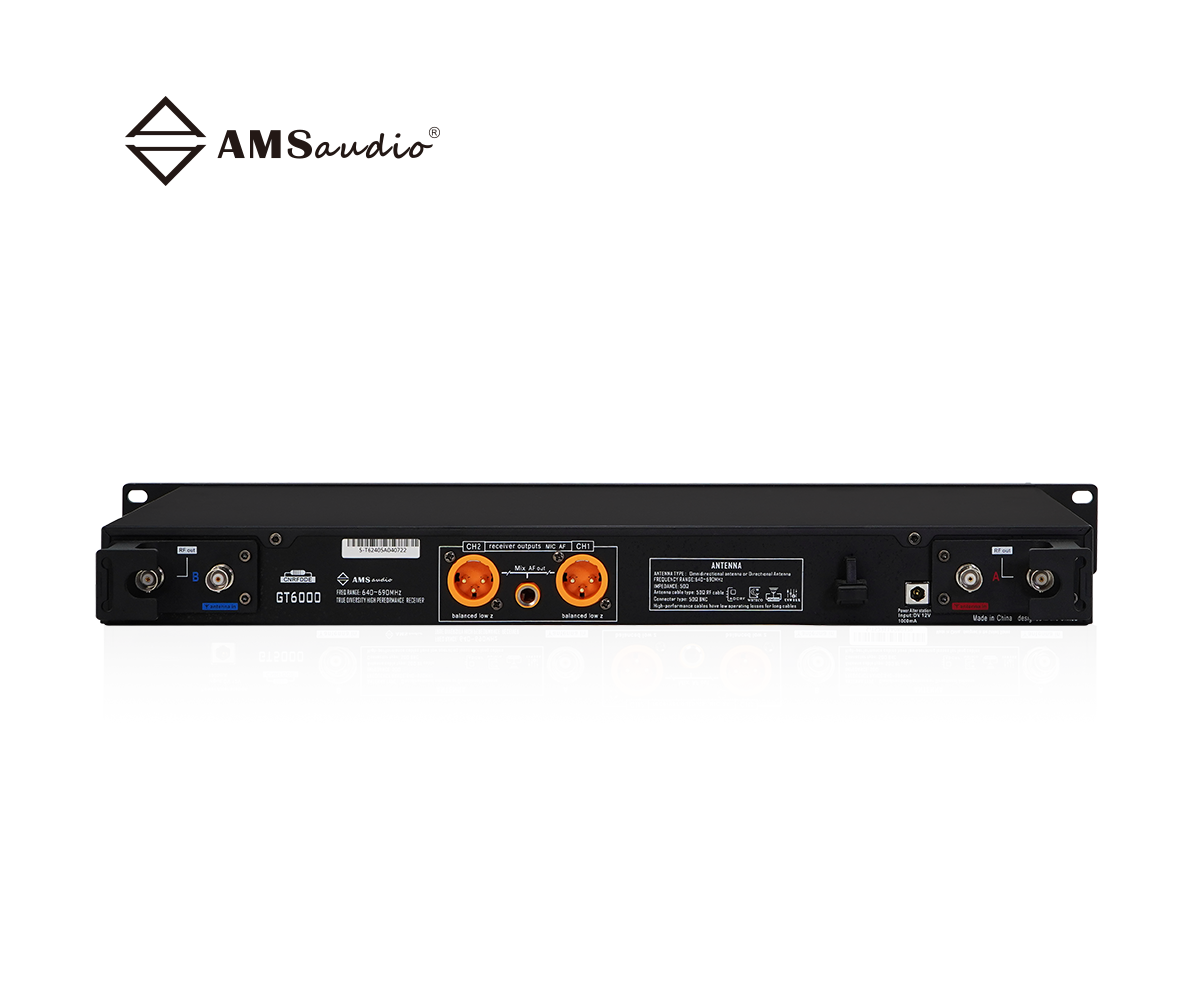

I The network port supports multi-device cascading.
The GT6000 host is equipped with network interface data transmission, which can be used for routine firmware upgrades, as well as for synchronizing functions when multiple units are cascaded and switched at once.
I Support WTC3 software management
On the WTC3 platform, by connecting to the network port of the GT6000 host, the GT6000 host can upload its own data in real time. This data can be read and managed by the WTC3 for battery level information, RF radio frequency information, AF level information, interference warning information, channel number, as well as the handheld waist bag mode, etc., totaling over 20 items.
• Independently developed WTC3 wireless terminal platform

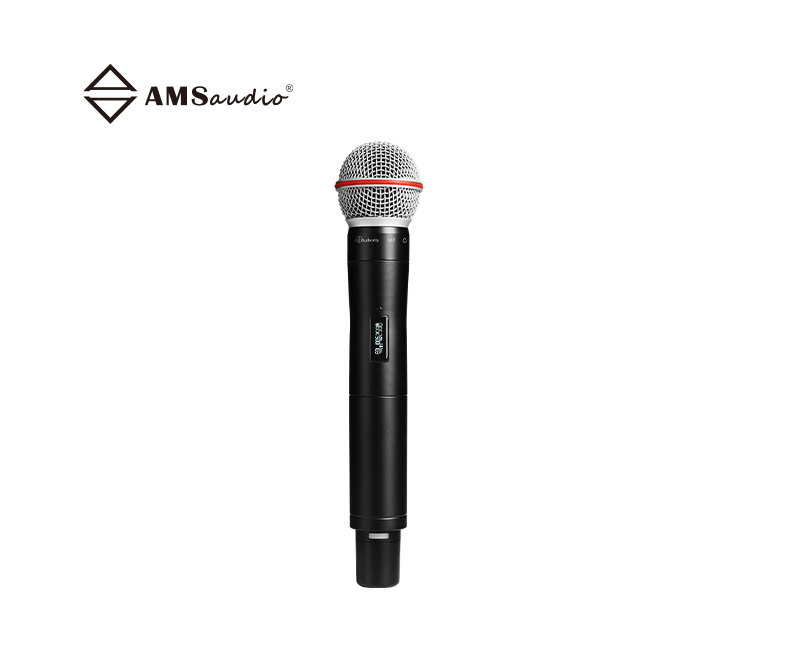

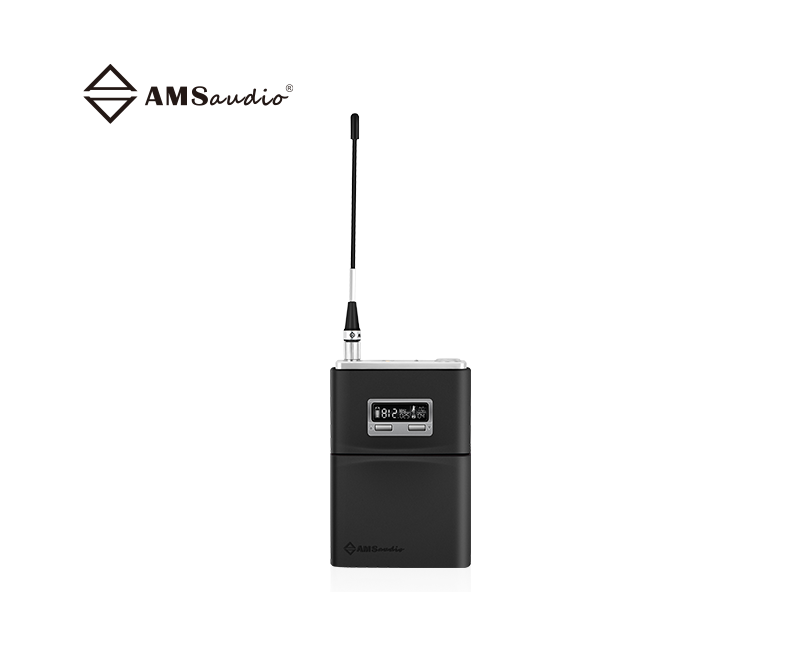

I GT6000The wireless Receiver can be compatible with the following microphone transmitters.

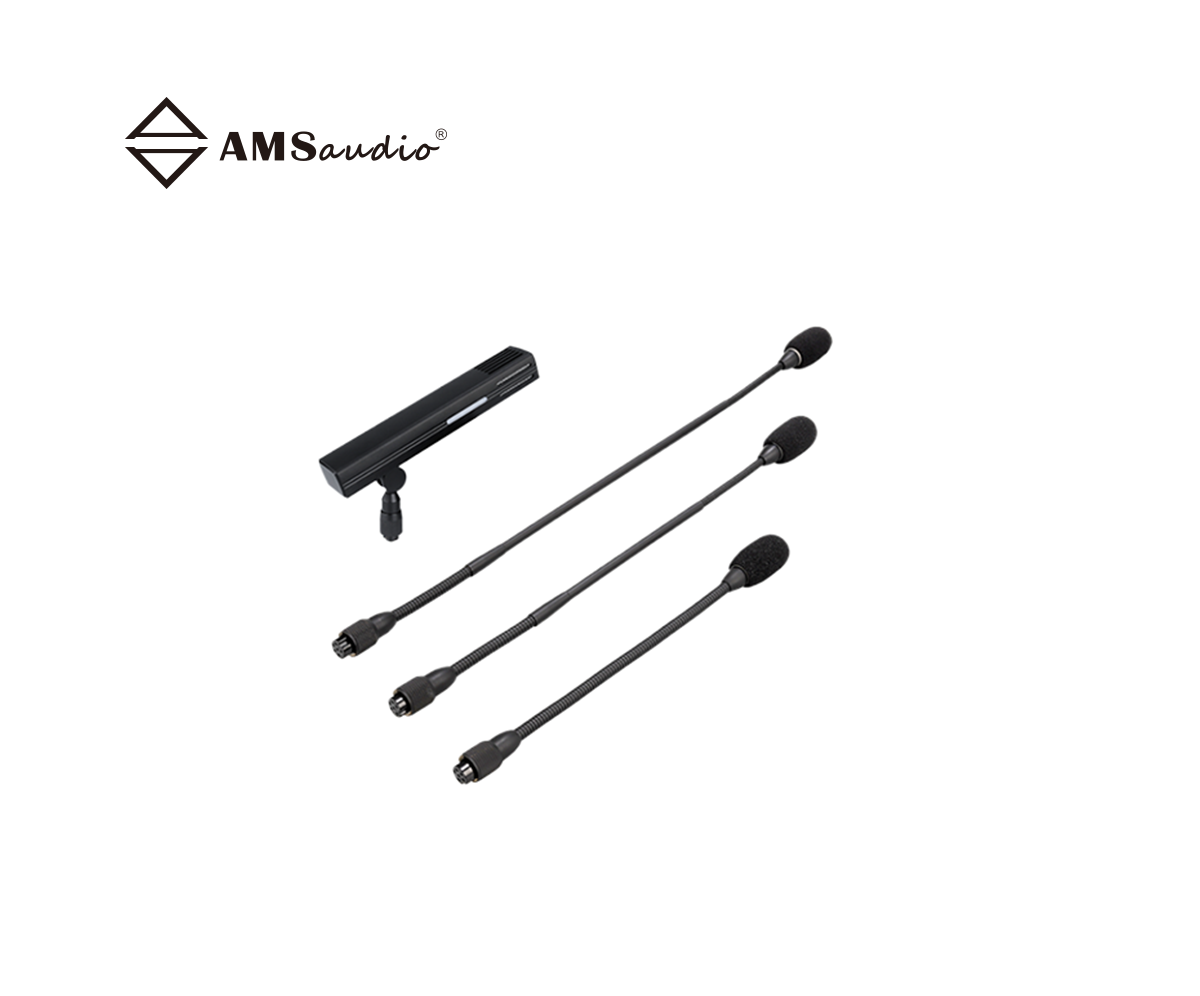

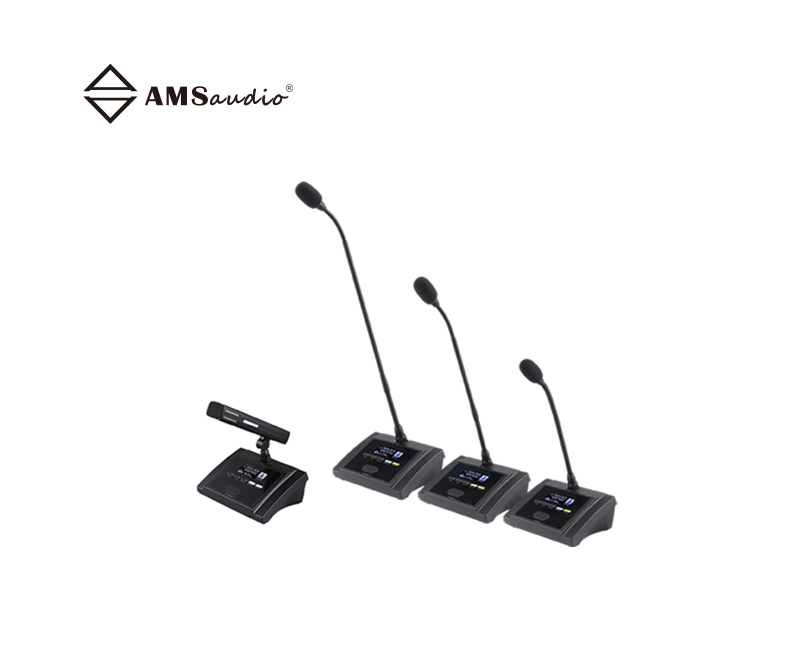

• It can also be used in combination with the TK200 tour series and the swivel-neck conference microphone.
I The universal size is widely applicable and easy to use with flexibility.
I GT5000 / GT6000 / TC2100 / TC2200 Parameter Configuration Comparison Table
I Product details
I Product List
①Receiver*1 ②Compatible power supply*1 ③Network patch cord*2 ④Airborne antenna selection and configuration*1 ⑤Airborne antenna selection and configuration
