TC2100True diversity dual-channel wireless microphone receiver
Receiving sensitivity: -108 dBm
Diversity method: 2 antenna active true diversity
Number of antenna cascading ports: 2 BNC
Number of multi-antenna cascading: Suggested 4 units (maximum no more than 8 units)
Transmitter switching function: Independent transmitter switching
Software radio: Supports WTC3 radio frequency planning software
Data local area network: Supports data local area network server
Frequency deviation warning: Signal difference (8 dB)
Central control control port: RS232/RS485
Audio level output: +12 dBu
Frequency step: 25 kHz
System distortion: (reference value +45 kHz deviation, 1 kHz modulation mode): 0.3% total harmonic distortion Total harmonic distortion is used to measure how much current noise is generated by the device
Output impedance: Line level less than 30 Ω
Receiver audio output level: (±45 kHz deviation, 1 kHz tone): XLR interface (connected to 600 ohm load): -6 to +12 dBu (line)
Audio response range: 30 - 18000 Hz
Frequency range (bandwidth): 780 - 820 (40 MHz) 510 - 560 (50 MHz) 640 - 690 (50 MHz)
Adapter power supply x1
Networking cable x1
Airborne antenna adapter
Product combination / Combination
PRODUCT DETELS / Details
I Receiving system
• True diversity reception • Four antennas receiving • Built-in cascading function • Built-in compensation function • Support 4 channels sharing 2 antennas or directional antennas
I Output performance
• Host output：+12dBU • Higher output level, wider gain range, and stronger adaptability • The gain adjustment range is wider, enabling flexible adaptation to the input requirements of different types of mixing consoles. The system output level can be adjusted according to the equipment to ensure signal quality and system stability.
I The handheld wallet allows for quick switching between essential functions for performing artists. Don't miss out on this important feature!
Each channel of the host can store 2 frequencies. When switching between them, the audio signal of the stored frequency automatically becomes silent. This enables one host to serve 2 handheld devices and 2 waist packs, allowing for seamless switching. The one-click switching feature is a patented technology of AMSaudio, which can significantly reduce the equipment investment for small-scale performances and simplify the application scenarios.

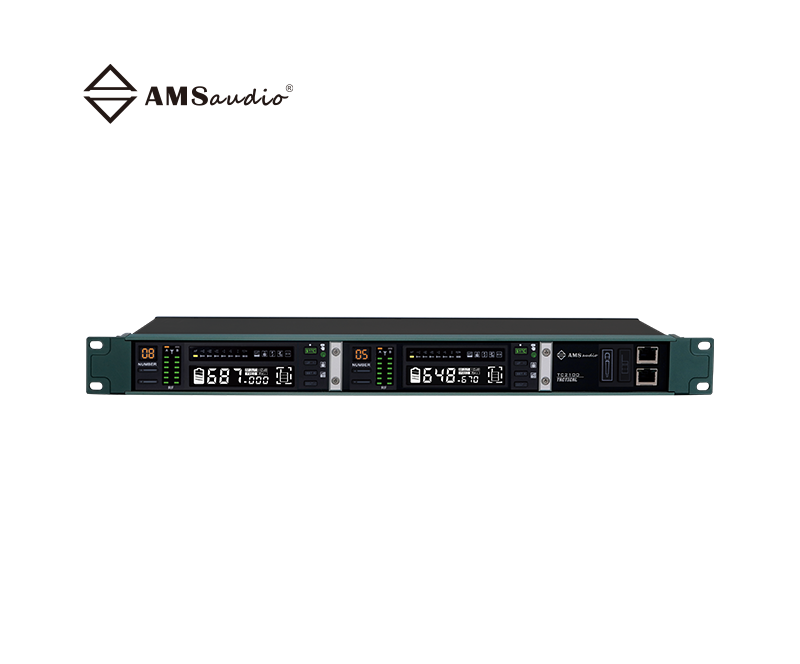

I Simple and intuitive operation panel, enabling quick mastery of operations and enhancing work efficiency
The operation panel incorporates the application engineers' understanding and breakthroughs in mobile applications. Thus, the functions can be accessed and set with just one click. The high-contrast display screen presents the required parameters. The patented one-click switch button in the performance industry is highly praised and enables quick switching between handheld microphones and waist-pack microphones. The dual network ports allow the device to quickly join the Ethernet Internet deployment network.

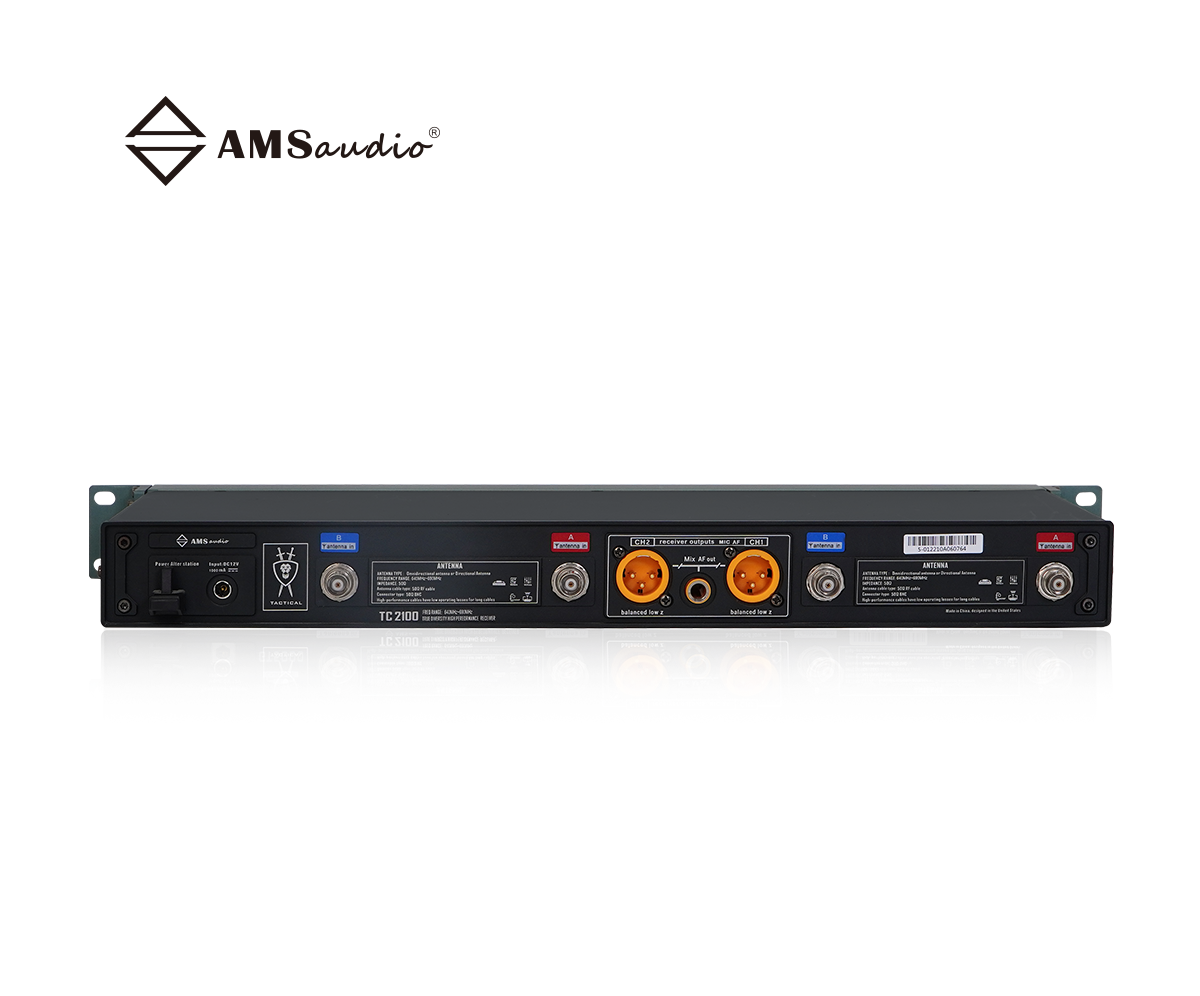

Each channel has an independent diversity antenna, and is equipped with two XLR RCA balanced differential audio output sockets, as well as a 6.35 non-balanced mixed audio output socket.
I TC2100The wireless receiver can be matched with the following several transmitters.
I It can also be used in combination with the TK200 tour series swivel-neck conference microphone.
I The network port supports multi-device cascading.
The TC2100 host is equipped with network interface data transmission, which can be used for routine firmware upgrades, as well as for the synchronization function when multiple units are cascaded and switched simultaneously.
I Support WTC3 software management
Connect the WTC3 platform to the network port of the TC1200 host. The TC2200 host can upload its own data in real time for WTC3 to read and manage. It can provide information such as battery level, RF (radio frequency) information, AF (audio frequency) level information, interference warning information, channel number, and handheld waist bag mode, totaling over 20 items.
• Independently developed WTC3 wireless terminal platform
I The universal size is widely applicable and easy to use flexibly.
I Configuration List
