As the wireless environment at the performance site deteriorates day by day, and with the emergence of more complex site usage requirements, the traditional antenna distributor has failed to meet practical needs. Its fixed gain and 2-antenna input features have severely restricted the establishment of a rational system.。

The AMSaudio-UC series wireless distribution system can fully meet the needs of users.Users can freely adjust the gain or attenuation of each input signal according to different signal sources and application scenarios, ensuring the best signal quality in complex wireless environments. They can also configure up to 6 antennas independently, or use a more extensive antenna system via networking for multi-area coverage.

I. Signal Processing: Flexible Allocation and Precise Regulation

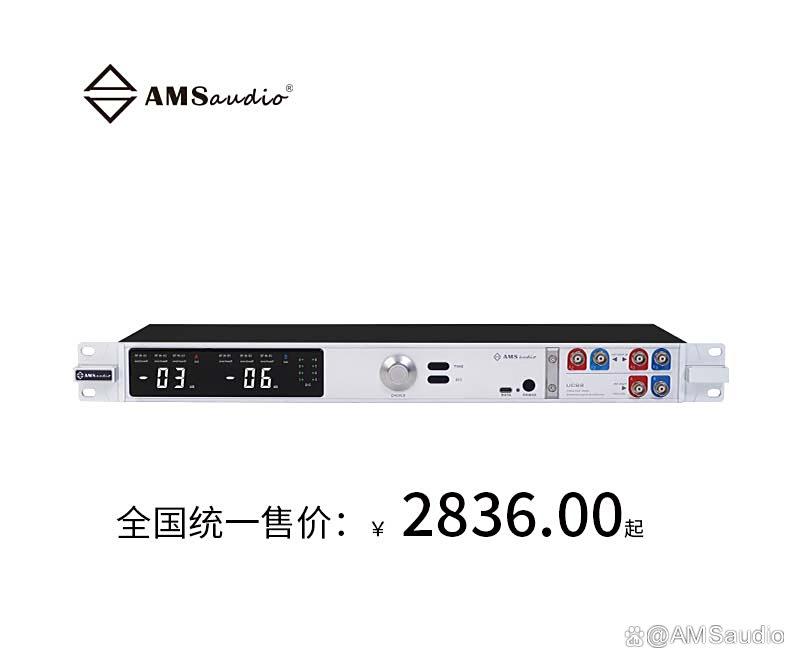

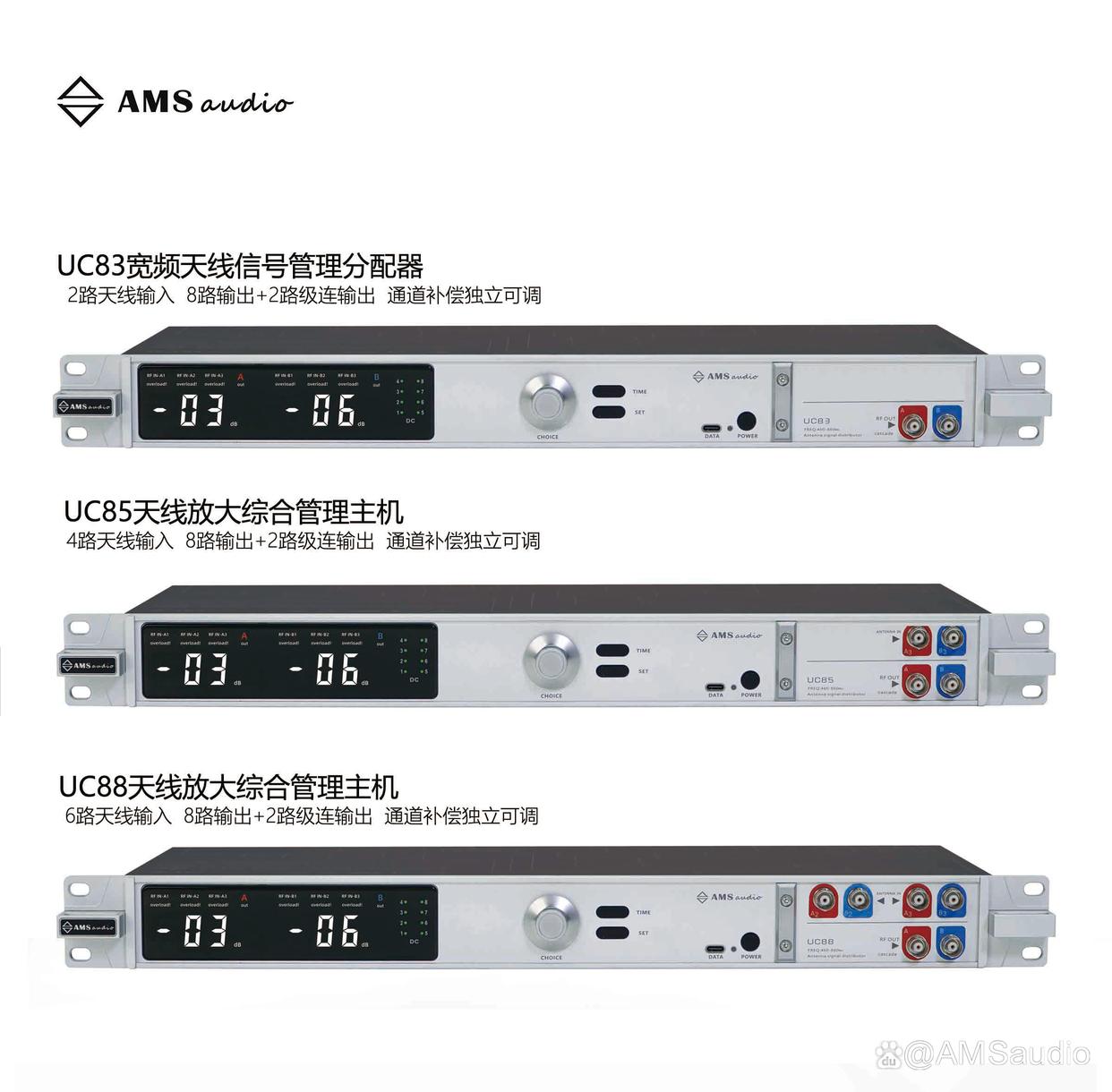

1. Channel Design： The UC83/UC85/UC88 antenna distributor is a high-performance signal distribution device, specifically designed for wireless communication and wireless audio systems.

All three distribution devices have two independent antenna channels (Channel A and Channel B)

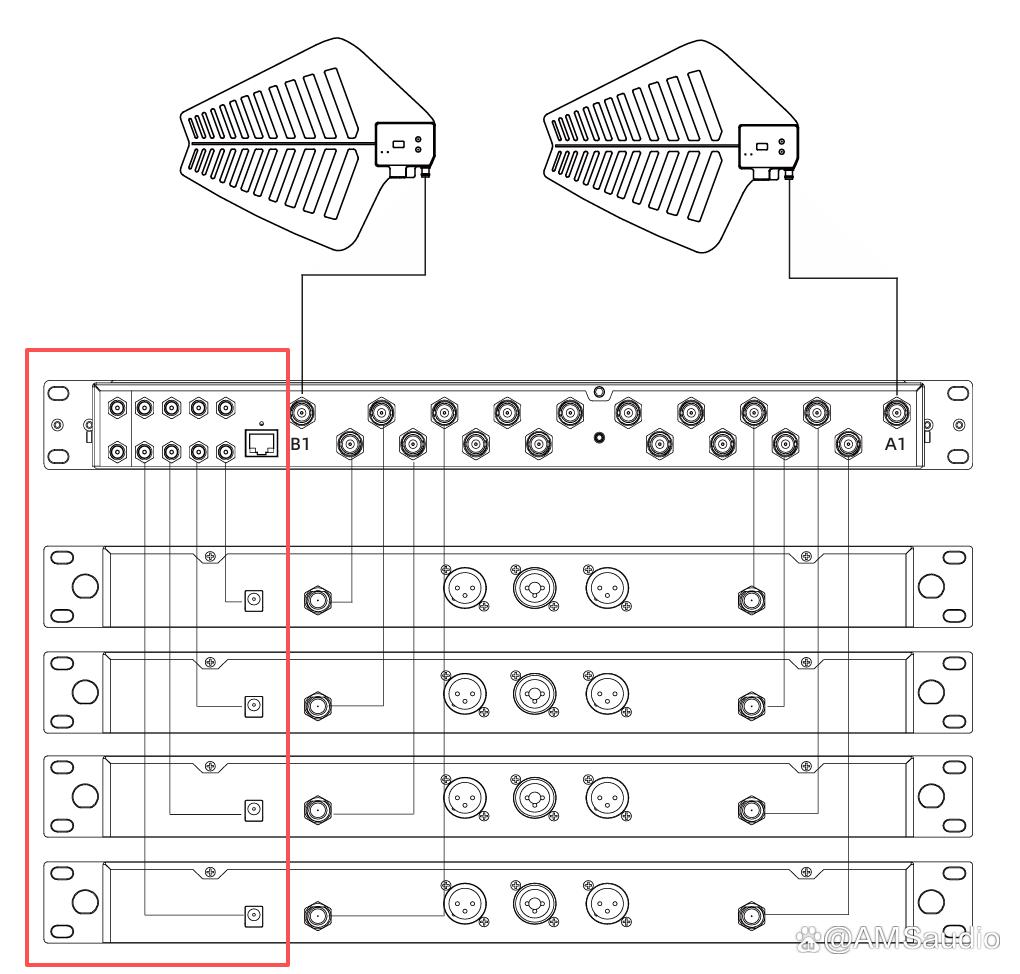

For example: Each channel of UC88 can accommodate up to 3 antenna signal inputs (depending on the model configuration). After being combined, the signals are respectively output to 8 antenna signal output ports for each of the A and B channels.

Whether it is a large-scale\multi-area environment or a small-scale\single-area performance event, it can meet the signal coverage requirements of the equipment.

2 Signal regulation： Each antenna input terminal is equipped with an independent signal adjustment function，It can precisely control the level, solve the problem of level differences among different signal sources, avoid signal distortion and noise, and ensure the transmission quality.

二、 System Assurance: Stable Operation and Anti-interference Capability

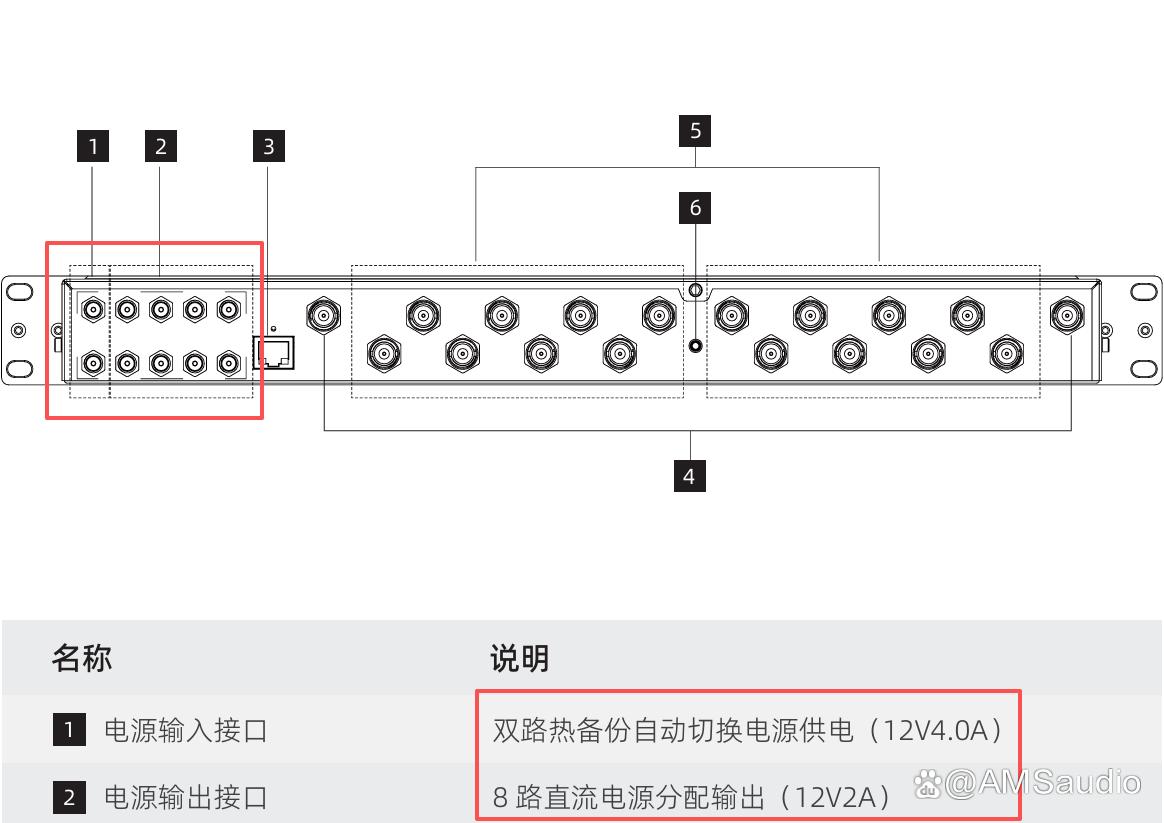

1 Power supply guarantee: A dual-path hot backup automatic power switching system is adopted. In the event of a failure of one power supply, it can automatically switch to the other, ensuring uninterrupted operation of the equipment; at the same time, 8 DC power distribution outputs are provided to supply stable power to associated devices.

2 Anti-interference transmission: The isolation degree exceeds 30dB, which can effectively isolate interference signals in complex wireless environments, prevent crosstalk, and ensure pure and stable transmission of each signal.

3 Equipment durability: Manufactured with high-quality components and subject to strict quality inspections, it can maintain stable performance over long periods and under high-intensity usage conditions, thereby reducing the risk of failures and maintenance costs.

III. Operation and Adaptation: Convenient Monitoring and Widespread Compatibility

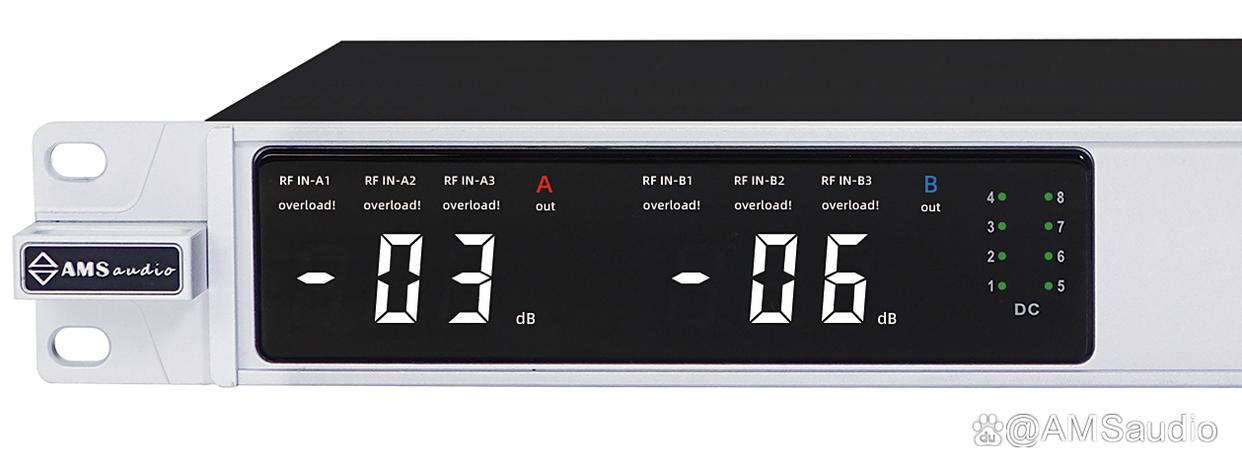

Real-time monitoring：It has a dual-screen real-time monitoring function, allowing operators to directly view the operating status and signal parameters of the equipment, facilitating timely adjustments and optimizations to ensure the equipment operates at its best performance.

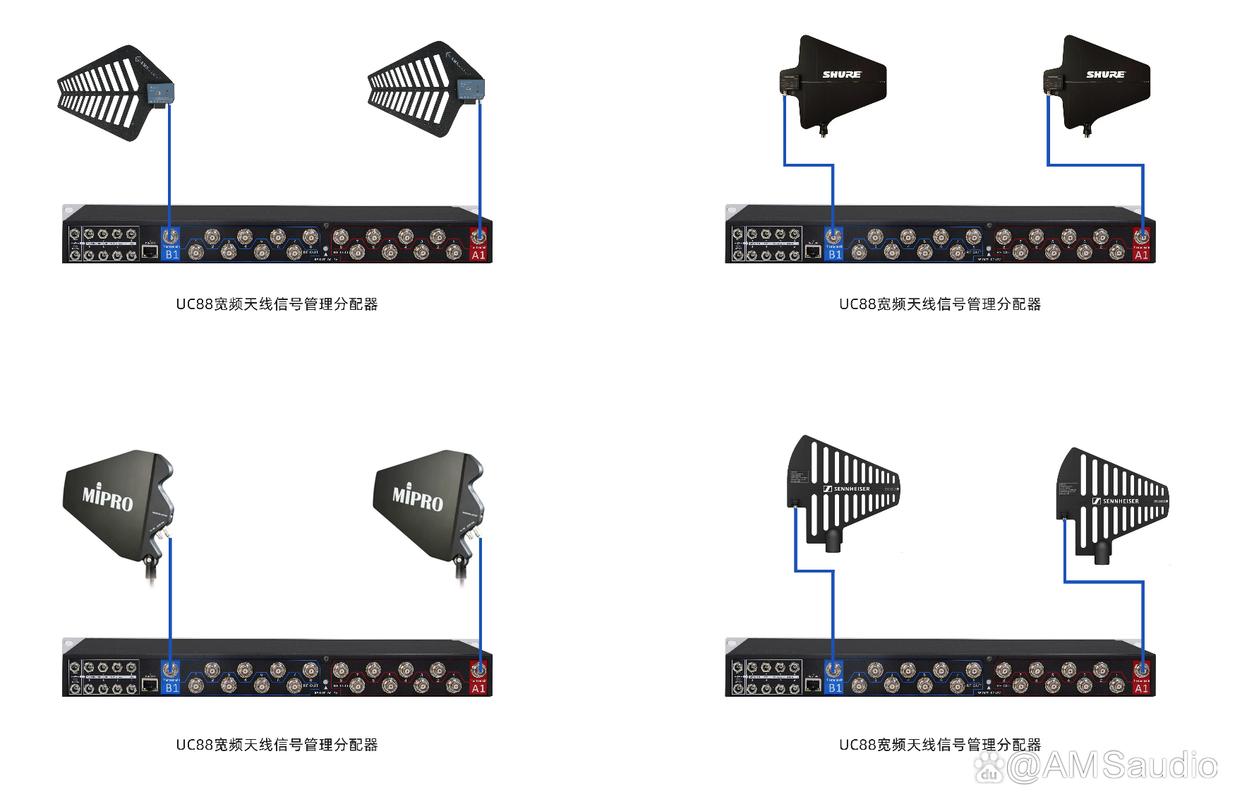

Device compatibility：Compatible with the vast majority of brands of wireless audio devices on the market, there is no need to worry about device compatibility issues. This provides convenience for users in system setup and equipment selection.

Therefore, whether it is used for performances, fixed installations, broadcasting, wireless communication or signal testing, this antenna distributor can offer performance and convenience that surpasses traditional equipment, truly achieving a perfect combination of flexibility and efficiency.
