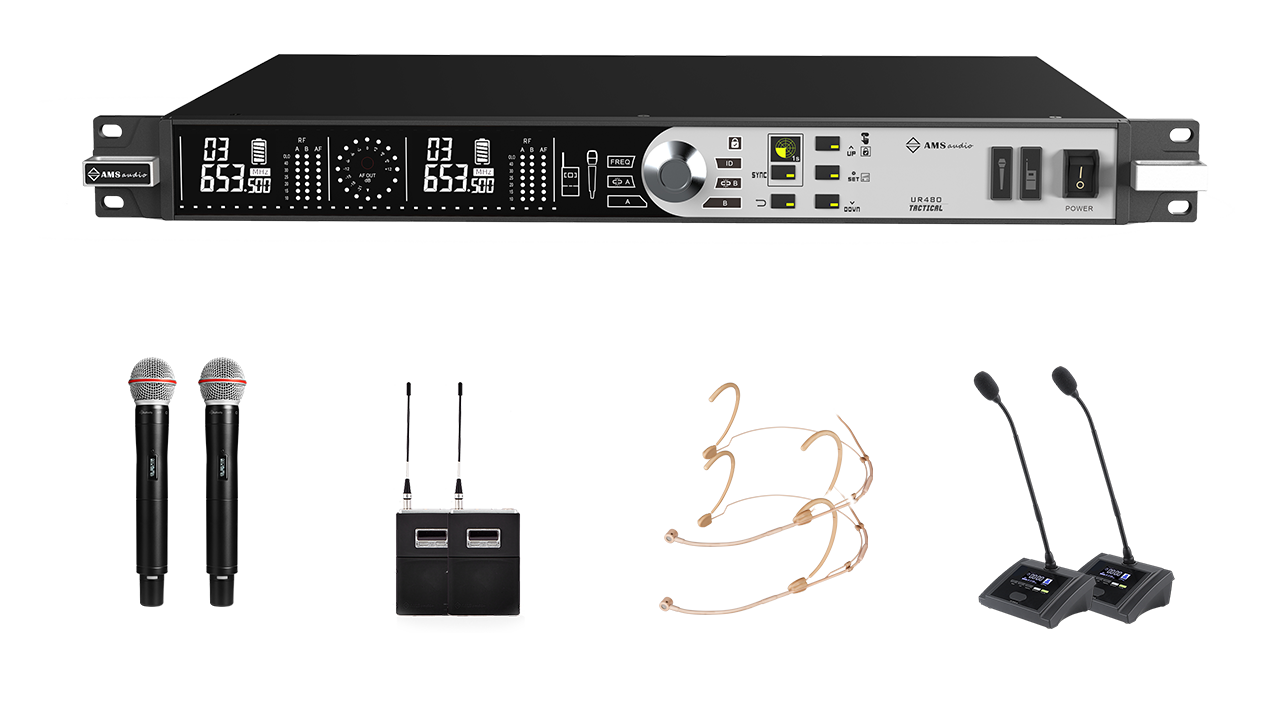

UR480True Diversity Dual-Channel Wireless Microphone Receiver
Frequency range: 640-690 MHz;
Number of adjustable channels: 100×2;
Oscillation mode: Phase-Locked Loop Frequency Synthesis (PLL);
Frequency stability: ±10 ppm;
Receiving mode: True Diversity Super-External-Conversion Secondary Frequency Conversion;
Pilot mode: Digital pilot;
Audio circuit frequency response: 20-20000 Hz;
Harmonic distortion: ≤0.5%;
Signal-to-noise ratio: ≥50 dB;
Audio output: Balanced output and mixed output;
Receiving sensitivity: ≤-100 dBm;
Power supply specification: 12VDC/2A
PRODUCT DETELS / Details
I Technical Specifications
UR480 Wireless Microphone Receiver
One-click switch to change the used transmitter. The central control unit can control the receiver, interference warning and frequency interruption analysis functions, serial port communication and local area network communication functions. The host display can set the host number and display synchronously with the transmitter. There are 2 RJ45 data networking interfaces and 2 transmitter switching buttons. Multiple hosts can switch the transmitter for networking.
Frequency modulation method: Broadband frequency modulation
Frequency range:780-820 MHz
Frequency adjustment:1600 reception frequencies, with the ability to be tuned using a 25KHz step size
Work bandwidth:50MHz
Maximum noise reduction (reference value ±38 kHz deviation)：>102 dB, (A weighted)
Radio frequency sensitivity：(2.0 μV，12)
System distortion (reference value ±38 kHz deviation, 1 kHz modulation method)：0.3% Total Harmonic Distortion Total Harmonic Distortion This term is used to measure how much current noise is generated by the measuring device.
Output impedance:The line impedance is less than 30 Ω.
Receiver audio output level (±38 kHz deviation, 1 kHz tone)：XLR interface (connected to a 600 Ω load)： -24 to +9 dBV (line)
Audio response range:25-18000HZ
Handheld microphone transmitter
Radio Frequency Modulation Method: Broadband FM
Frequency range: 780--820 MHz
Frequency adjustment: 1600 reception frequencies, with the ability to be tuned using a 25KHz step size
Replaceable Shure interface microphone head (microphone element)
Work bandwidth: 40MHz
Illusion Power Supply Output: 10V
Control noise suppression: Pilot tone control sound
Communication Encryption:128-bit encoding encryption
Radio frequency power output: 30mW(Maximum value)
Battery Requirements: 3V AA batteries, 2 in total
