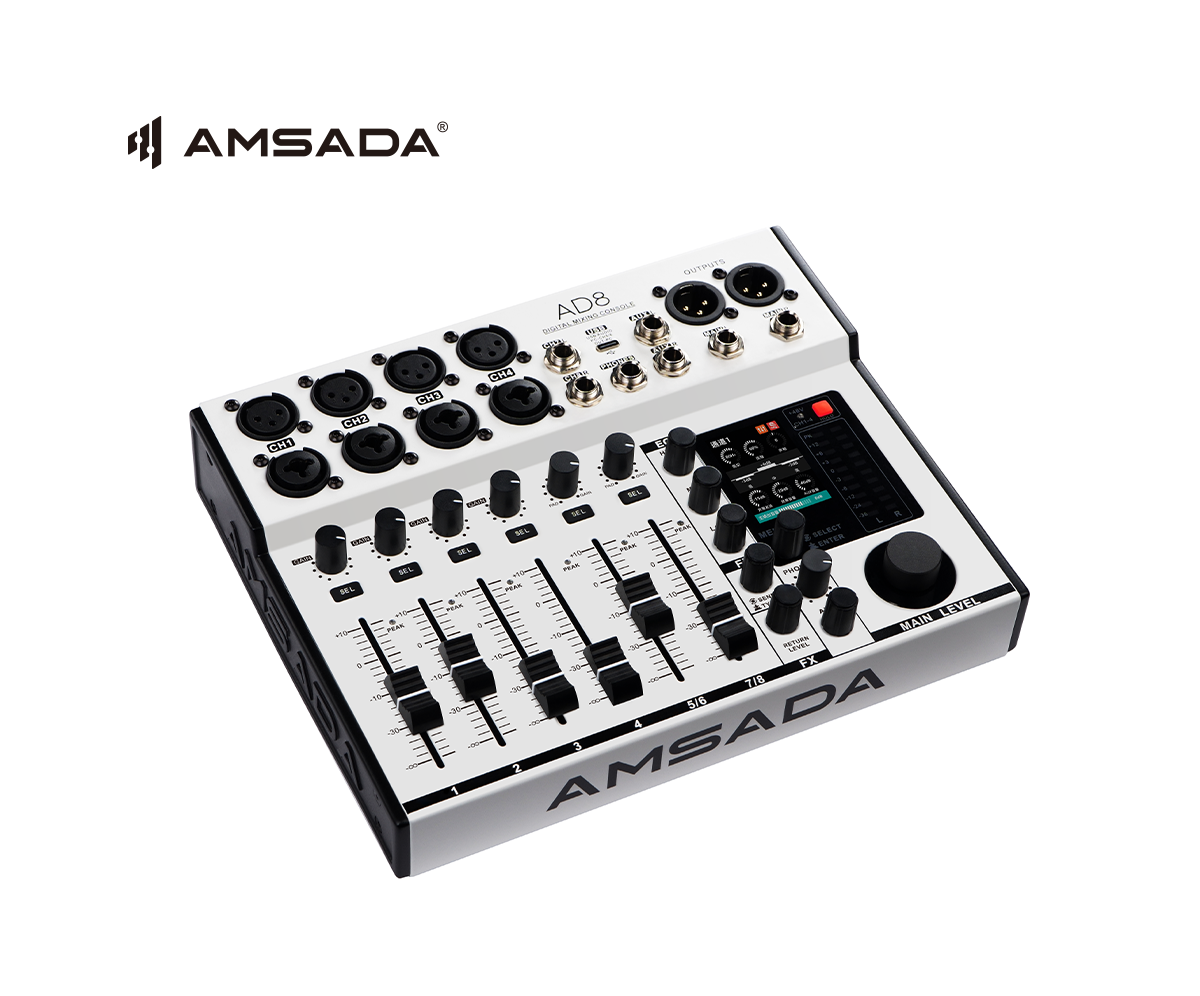

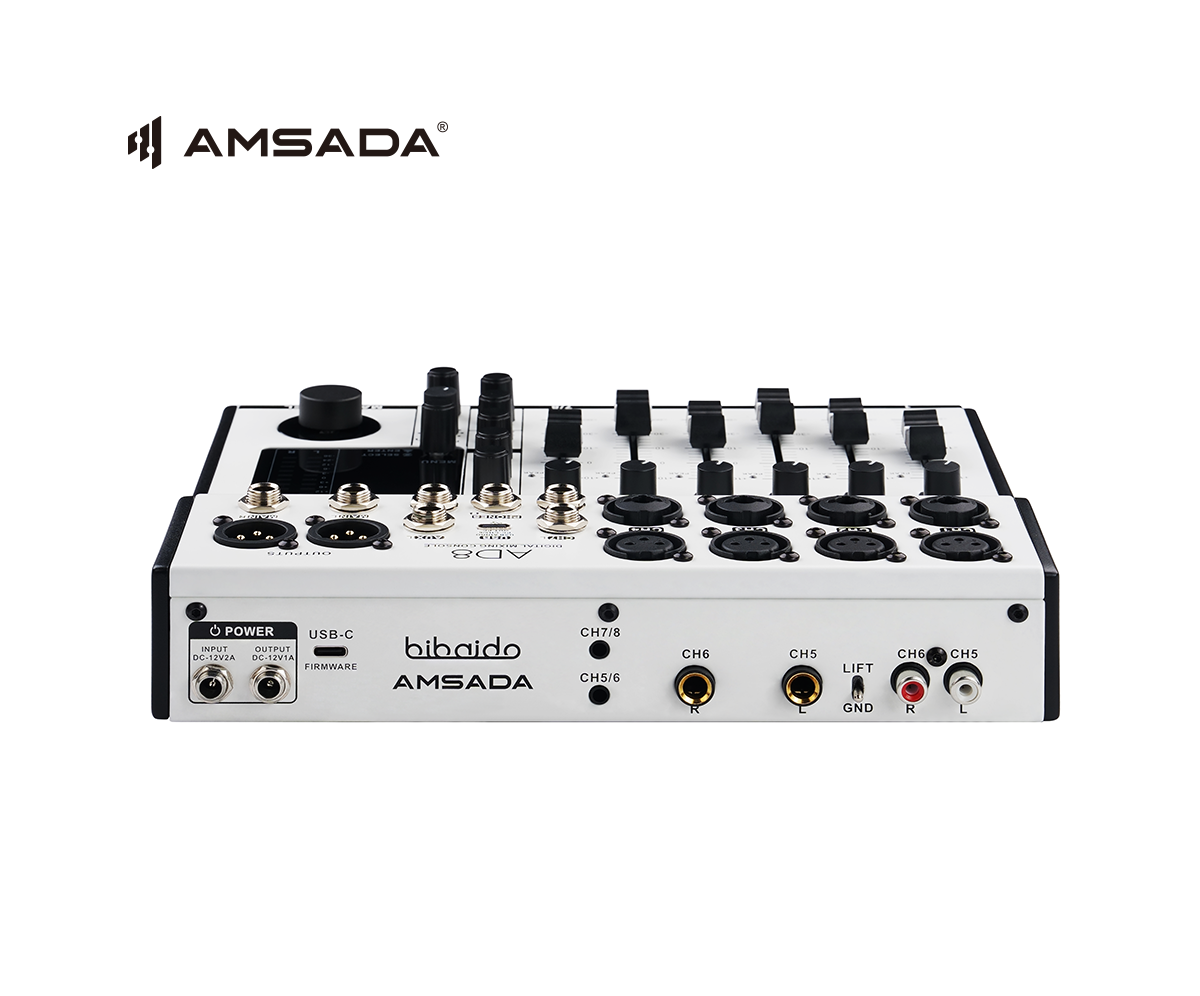

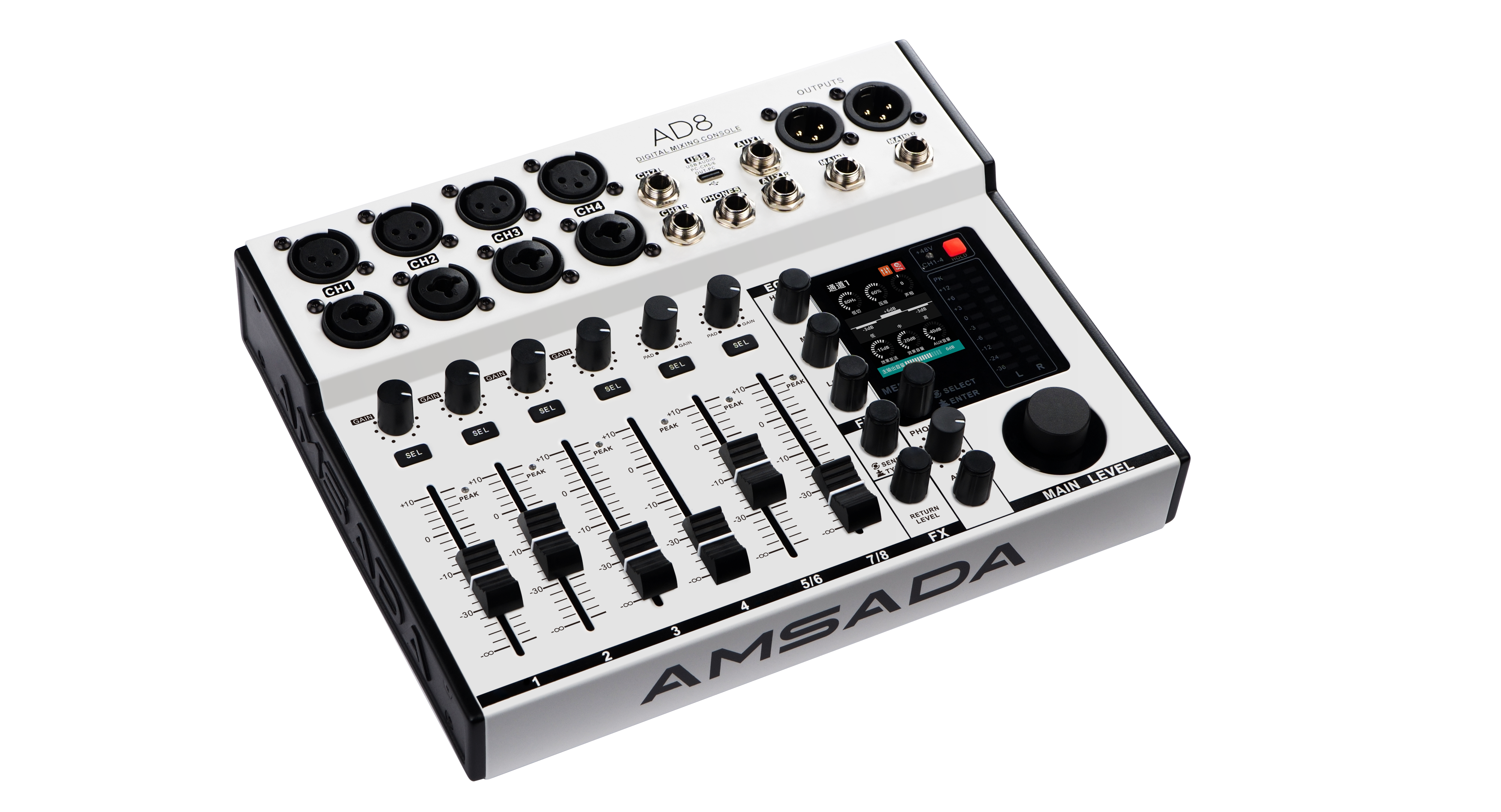

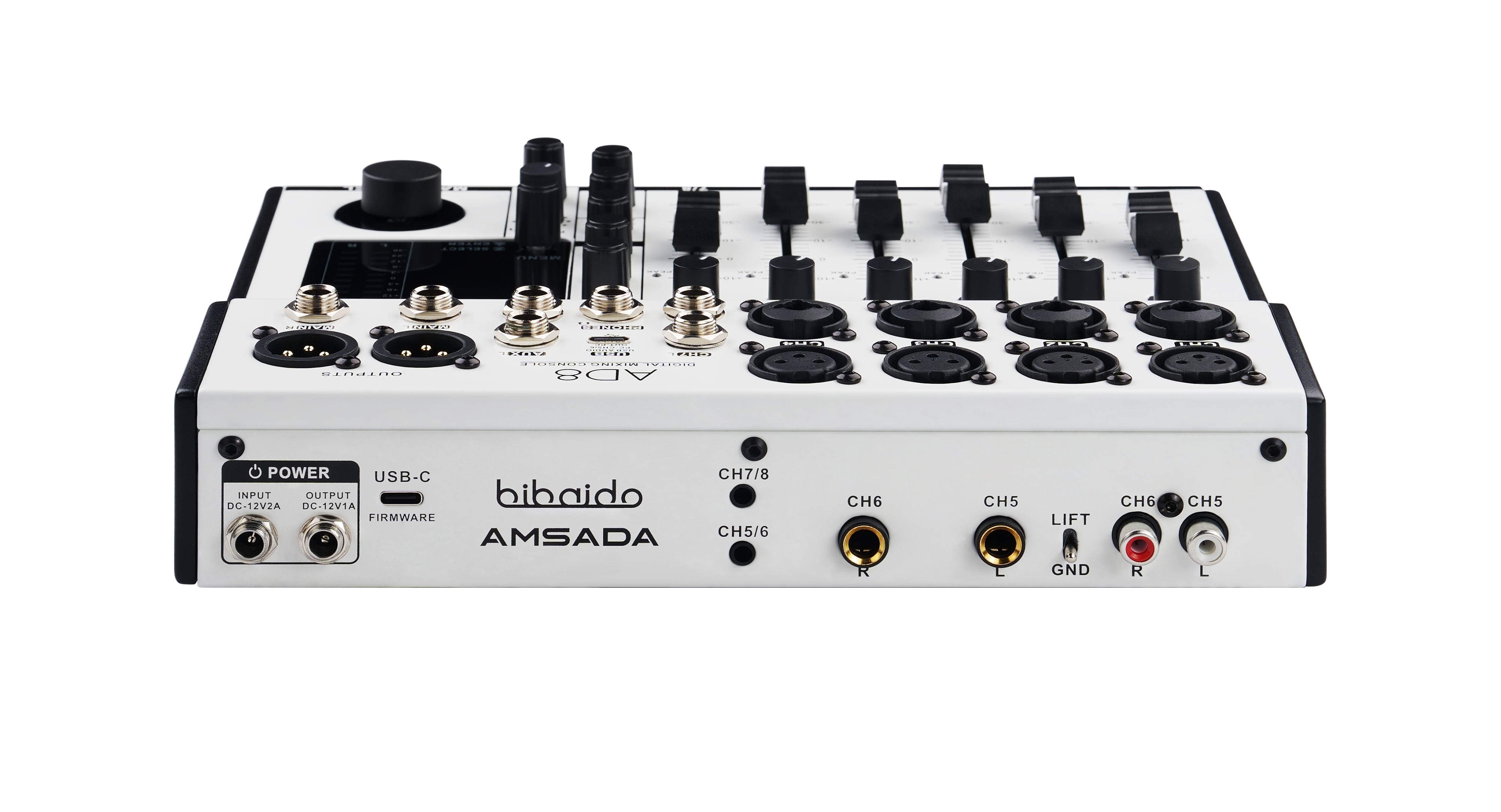

AD88-channel digital mixing console
input channel
• Mono (MIC / LINE): 4 channels
XLR/TRS composite interface, supporting +48V phantom power
• Stereo (LINE): 2 sets (CH5/6, CH7/8)
Supports 6.35mm / RCA / 3.5mm
• USB input: 1 channel
⸻
output channel
• Main Output (MAIN OUT): Stereo ×1 (XLR / TRS)
• Auxiliary output (AUX OUT): 2 channels
• Headphone output (PHONES): 1 channel
⸻
USB audio
• 2 IN / 2 OUT
• 24-bit / 48 kHz
• USB Type-C interface
• Compatible with Windows / macOS / iOS / Android
⸻
Channel function
• CH1–CH4: COMP / EQ / Digital Effects
• Stereo channel: line input / playback device
• Built-in digital effector
⸻
Phantom power supply
• +48 V (CH1–CH4 XLR Input)
⸻
power supply
• DC 12V / 2A input
• DC 12V / 1A output
⸻
system performance
• Frequency response: 20 Hz – 20 kHz
• Signal-to-Noise Ratio (SNR): ≥ 92 dB
• Total harmonic distortion (THD+N):
• CH1–4：≤ 0.007 %
• CH5–8：≤ 0.01 %
⸻
Appearance specifications
• Dimensions (W × D × H): 240 × 196.5 × 51 mm
• Weight: approximately 1.4 kg
• Color: white
• Mono (MIC / LINE): 4 channels
XLR/TRS composite interface, supporting +48V phantom power
• Stereo (LINE): 2 sets (CH5/6, CH7/8)
Supports 6.35mm / RCA / 3.5mm
• USB input: 1 channel
⸻
output channel
• Main Output (MAIN OUT): Stereo ×1 (XLR / TRS)
• Auxiliary output (AUX OUT): 2 channels
• Headphone output (PHONES): 1 channel
⸻
USB audio
• 2 IN / 2 OUT
• 24-bit / 48 kHz
• USB Type-C interface
• Compatible with Windows / macOS / iOS / Android
⸻
Channel function
• CH1–CH4: COMP / EQ / Digital Effects
• Stereo channel: line input / playback device
• Built-in digital effector
⸻
Phantom power supply
• +48 V (CH1–CH4 XLR Input)
⸻
power supply
• DC 12V / 2A input
• DC 12V / 1A output
⸻
system performance
• Frequency response: 20 Hz – 20 kHz
• Signal-to-Noise Ratio (SNR): ≥ 92 dB
• Total harmonic distortion (THD+N):
• CH1–4：≤ 0.007 %
• CH5–8：≤ 0.01 %
⸻
Appearance specifications
• Dimensions (W × D × H): 240 × 196.5 × 51 mm
• Weight: approximately 1.4 kg
• Color: white
PRODUCT DETELS / Details
Digital input, analog operation logic, buttons combined with a screen, easy to get started.
Digital effector, clean and natural, suitable for vocal/instrument performances.
The three-in-one combination of mixer, sound card, and isolator allows for multiple uses in one device.
Built-in vocal/instrument preset parameters, one-click access, saving time on tuning.
8-channel microphone input + 25 stereo input groups + 2 stereo groups + headphone monitoring.
USB direct connection to mobile phones/computers makes recording and playback very simple.
