PRODUCT DETELS / Details

I Professional-level lossless audio transmission

In the 100-meter cable transmission test in the laboratory, it exhibited linear characteristics. Its high-frequency response exceeded 36kHz. It is highly favored and sought after by recording engineers, audio technicians and musicians in the professional audio field, and has become their preferred equipment and designated DI box.

I Fully imported hardware configuration

The X1 professional DI box provides a one-stop solution for stage audio problems, perfectly presenting the original sound of all instruments.

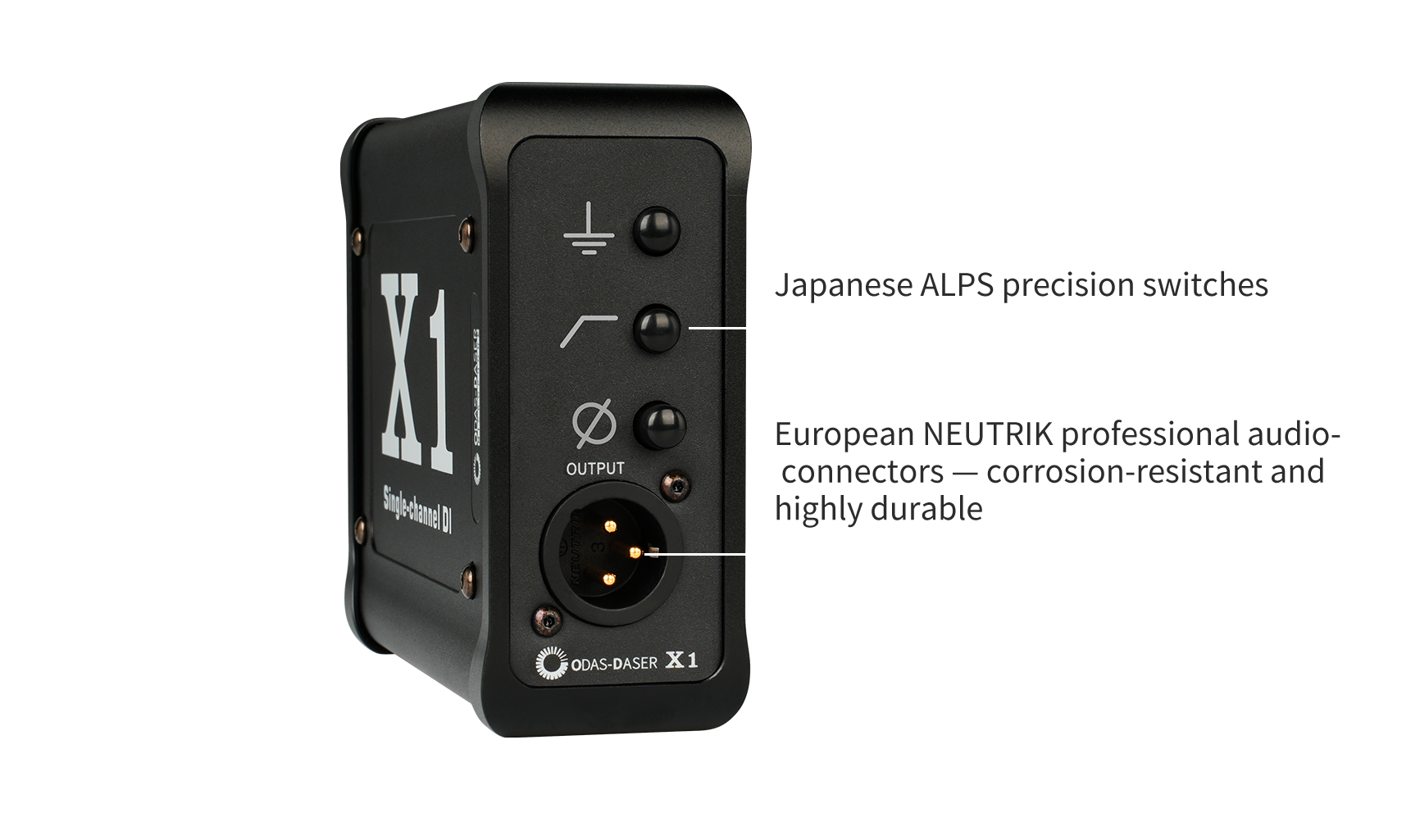

  Fully imported hardware configuration European NEUTRIK professional audio interface (XLR/TRS composite gold-plated contacts), resistant to corrosion and capable of withstanding tens of thousands of plug-ins.

  Control Component: Japanese ALPS precision switch (with 100,000 operation life).

 Circuit Core:  Imported solid-state capacitors + customized filtering module, with a high-frequency extension stability reaching 36kHz (±0.5dB)

I Functional interface

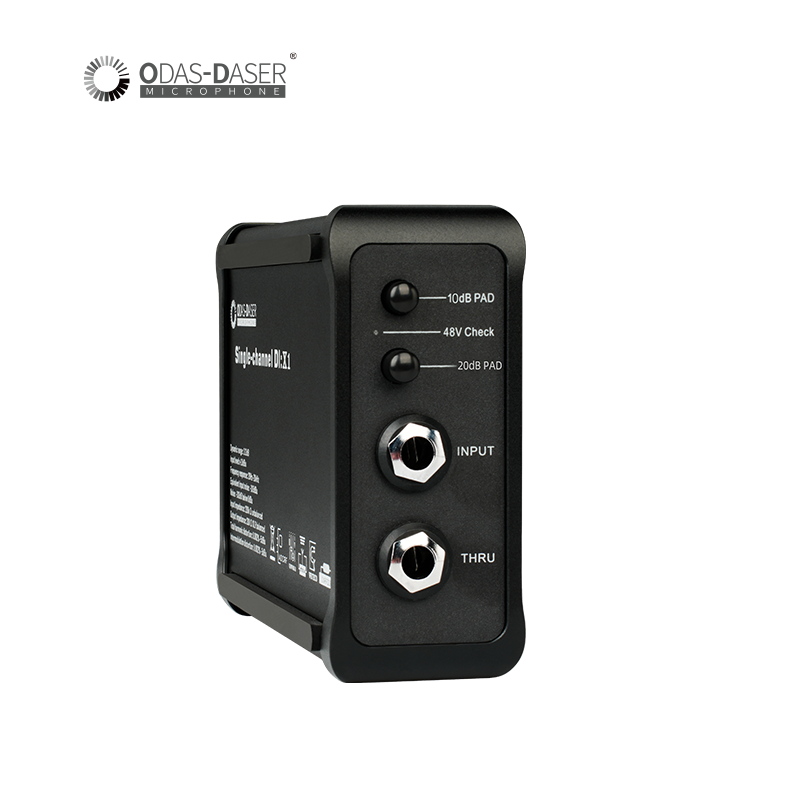

1.Pad/-10dB : Reducing the input level helps prevent signal overload.

2.48V detection light : Use in conjunction with the LowCuta button. Note that this light is for detection purposes only and will not remain constantly on. Pressing it will cause it to flash once, which indicates that the 48V power is on.

3.Attenuation - 20 dB: (To be used in conjunction with the -10dB button) The input level is set to prevent signal overload and the "THROUGH" function is combined into the input, with the output being in mono mode.

4.Unbalanced input

5.Unbalanced input: You can input "direct" to the guitar speaker for monitoring.

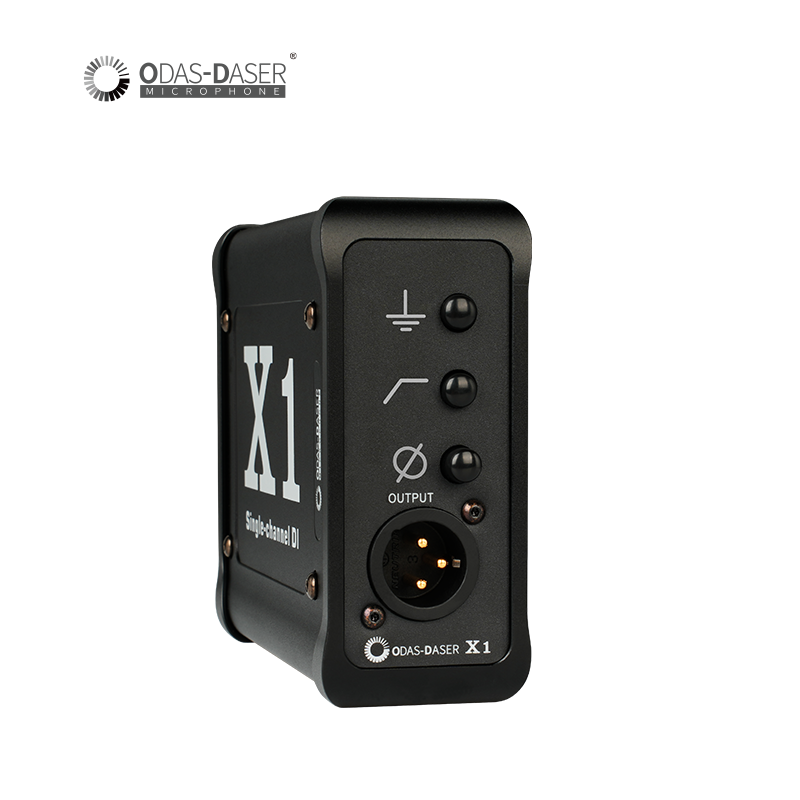

7.Grounding switch : Disconnect the internal grounding path between the input and the output.

8.80Hz low cut : The 80Hz low cut (high-pass) filter slightly reduces excessive low-frequency content, thereby providing more headroom and clarity.

9.Phase

10.Balanced output

I Application scenario presentation
