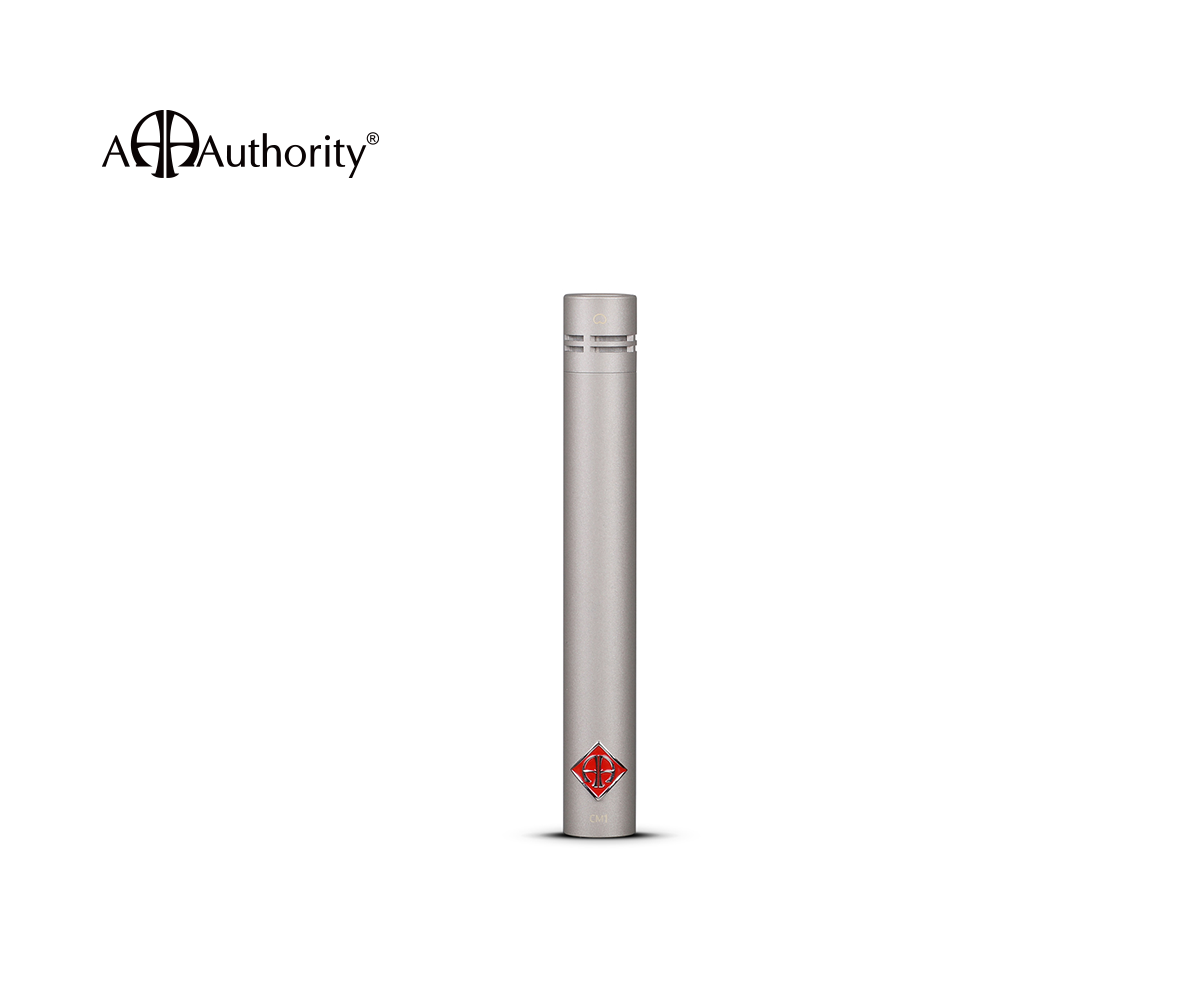

CM1Small Diaphragm Capacitor Microphone
CM1 is a heart-shaped capacitor microphone, suitable for recording and live performances. It has a wide frequency response and a sturdy structure. Its heart-shaped mode enhances the isolation of the sound source, perfectly capturing delicate musical performances such as vocals, choirs, and orchestral music.
Frequency response: 20 - 20 kHz
Directionality: Heart-shaped
Sensitivity: 6 mV/Pa (-34 dBV) +/- 3 dB
Output impedance: 200 ohms
Signal-to-noise ratio: > 75 dB
Maximum sound pressure level: 138 dBSPL
Equivalent sound pressure: 18 dB(A weighted)
Dynamic range: 120 dB
Working voltage: 12 - 48 V phantom power
Connection port: 3-pin XLR male socket
Length: 140 mm
Weight: 150 g
Directionality: Heart-shaped
Sensitivity: 6 mV/Pa (-34 dBV) +/- 3 dB
Output impedance: 200 ohms
Signal-to-noise ratio: > 75 dB
Maximum sound pressure level: 138 dBSPL
Equivalent sound pressure: 18 dB(A weighted)
Dynamic range: 120 dB
Working voltage: 12 - 48 V phantom power
Connection port: 3-pin XLR male socket
Length: 140 mm
Weight: 150 g
On-site sound reinforcement, choral performances, important speeches, recording of percussion instruments such as saxophone, trumpet, trombone, harmonica, acoustic guitar, etc., an excellent choice for broadcasting applications.

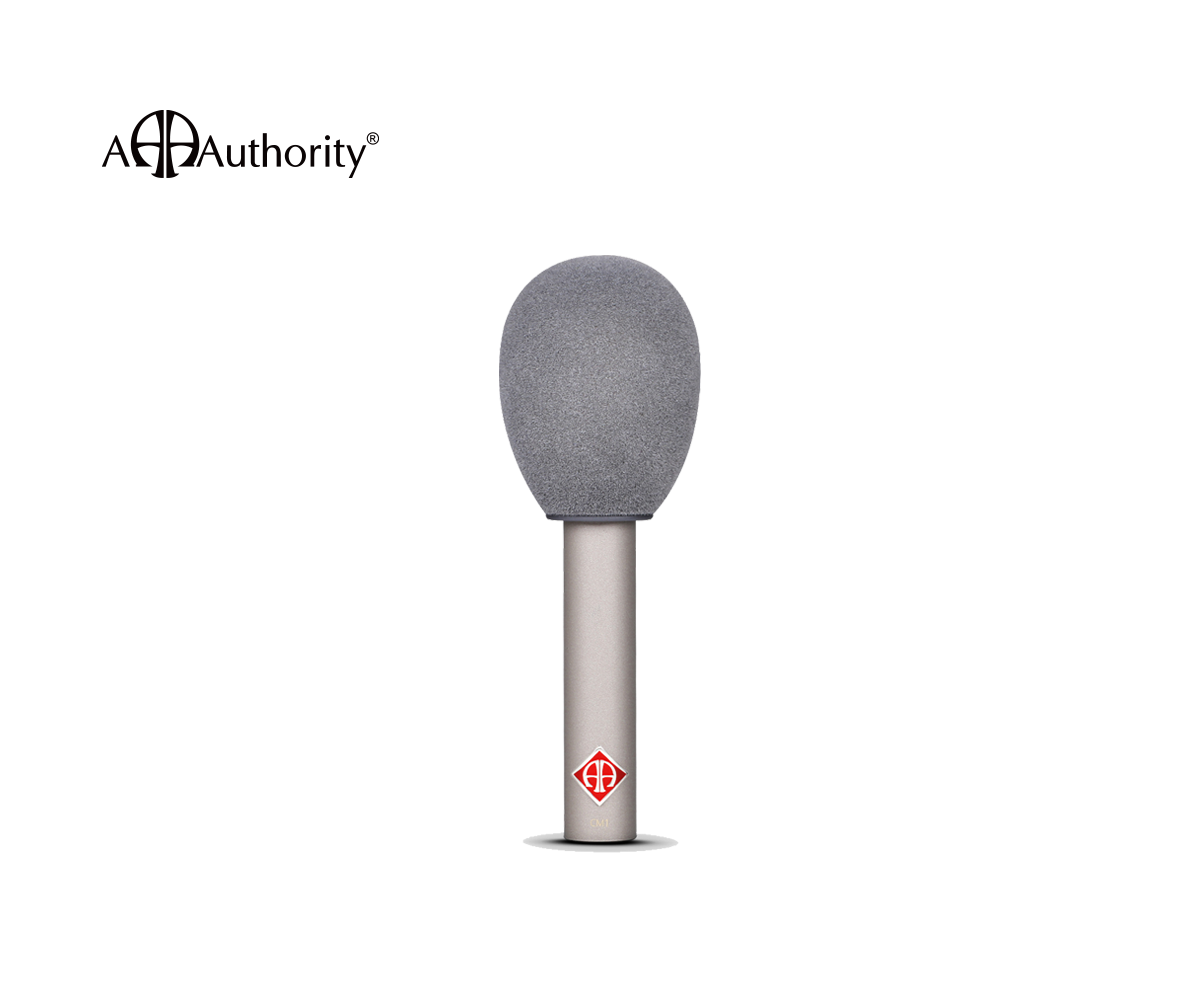

Windproof sponge cover x1
Small diaphragm condenser microphone x1

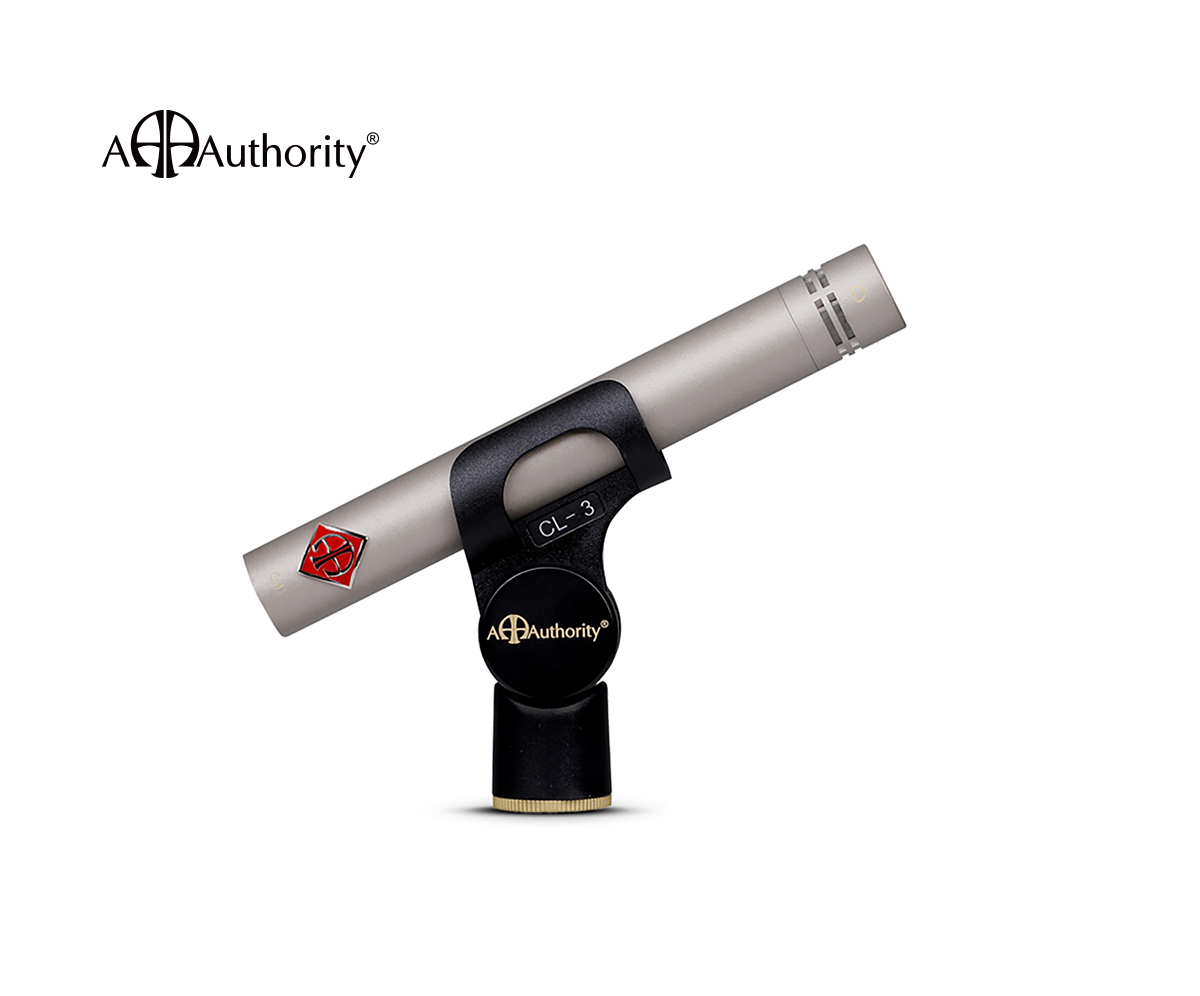

Microphone holder x1
Small diaphragm condenser microphone x1
Microphone holder x1
PRODUCT DETELS / Details
CM1 is a heart-shaped condenser microphone, suitable for recording and live performances. It features a wide frequency response and a sturdy structure. Its cardioid pattern enhances the isolation of the sound source, perfectly capturing delicate musical performances such as vocals, choirs, and orchestral music.
Simple design, compact and portable, easy to use.
